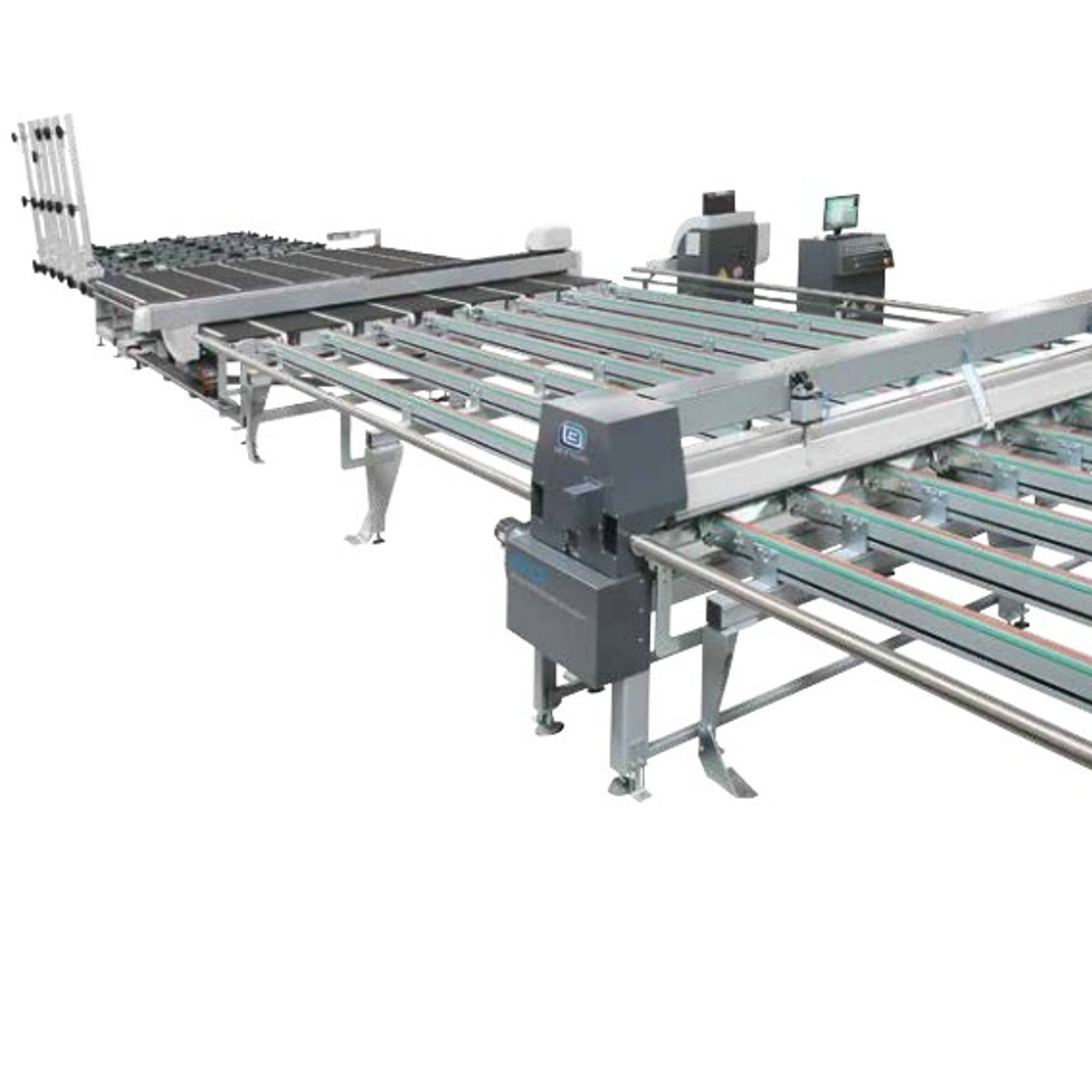

07EX Automatic Breakout System

The automatic breakout solution is made up of a belt conveyor, a breakout unit and an air cushion table. The belt conveyor is a totally modular machine for transporting and positioning the sheet on the breakout unit, completed with a set of fishbone belts to ensure maximum positioning precision, and with a gear motor controlled by dedicated encoder and inverter. The breakout module is a unit able to breakout glass with thickness in a given range, and is completed with pneumatic arms which, together with the combined action of the lower breakout roller, permit incision opening. The modules can work in a ‘static’ way. The air cushion table is a breakout table provided with belts for traverse transport, breakout bars for manual breakout of all the cuts other than ‘X’ cuts and air cushion for traverse and final piece handling.
