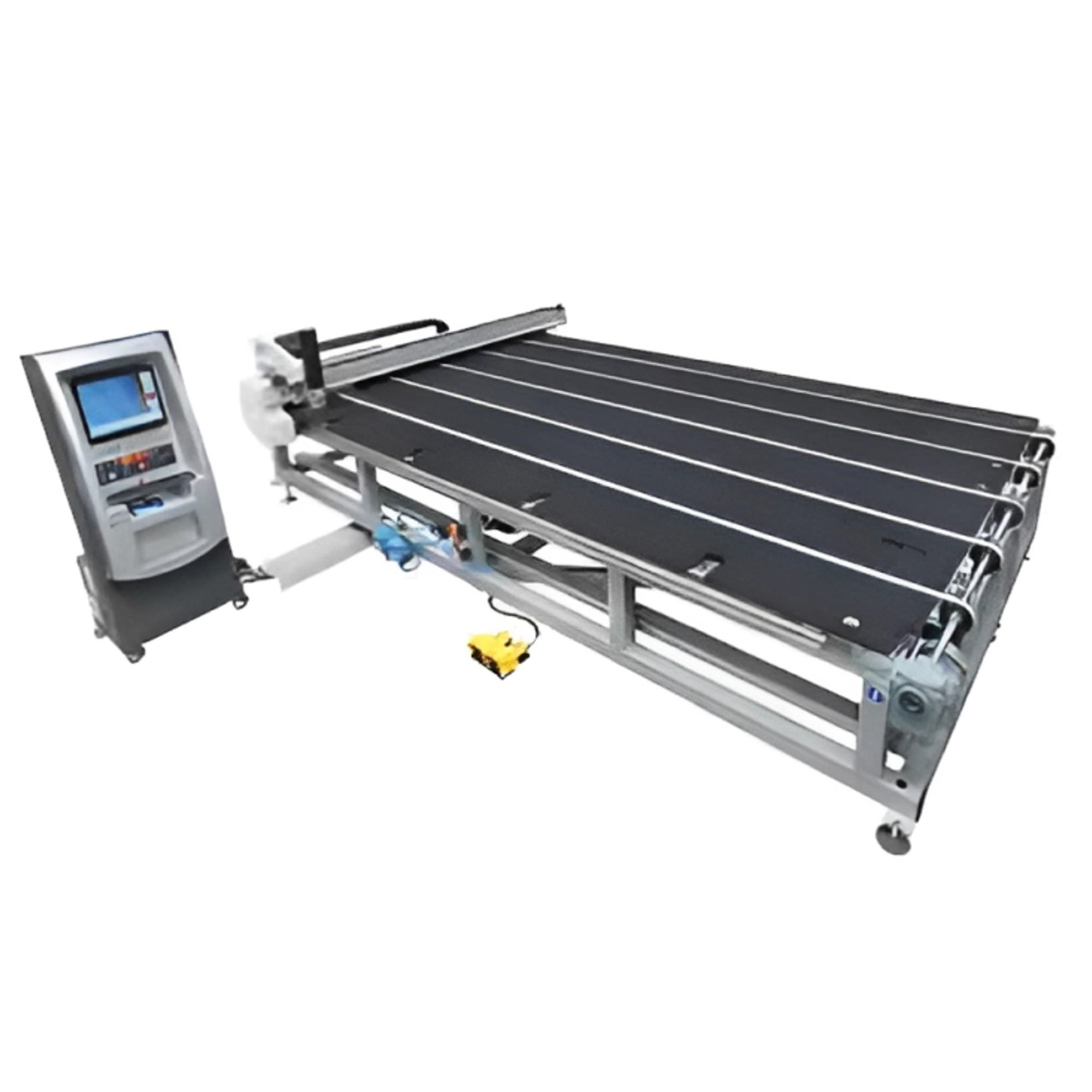

Cutting, grinding and marking table fully integrated with manual or automatic loading and breakout modules, zintended for applications requiring high productivity. The 343 EVO cutting table is fixed and complete with belt conveyor, automatic selection of cutting pressures, Shape Scanner + Scan Cad, optimiser on the machine and BCMS Windows.
Machine brochure
EVO family presentation
| Technical features | 343EVO Regular | 343EVO Jumbo |
|---|---|---|
| Automation level | ★★★★★ | ★★★★★ |
| Maximum bridge speed during cutting | 160m/min | 160m/min |
| Maximum carriage speed during cutting | 200m/min | 200m/min |
| Maximum carriage speed with 2 tools (Cut + PPL) | 200m/min | 200m/min |
| Maximum carriage speed with 2 tools (Cut + Laser) | 160m/min | 160m/min |
| Maximum cutting bridge speed with 2 tools | 160m/min | 160m/min |
| Maximum cutting bridge speed with 3 tools | 160m/min | 160m/min |
| Cutting accuracy on straight processes | ± 0,15mm | ± 0,15mm |
| Standard thicknesses | 2mm – 19mm | 2mm – 19mm |
| Optional thickness | 19mm – 25mm | 19mm – 25mm |
| Worktable height | 930 ± 20mm | 930 ± 20mm |
| Dimensions | 5250 x 3822mm | 7600 x 4427mm |
| Maximum dimension of processable sheet | 3810 x 2750mm | 6100 x 3355mm |
