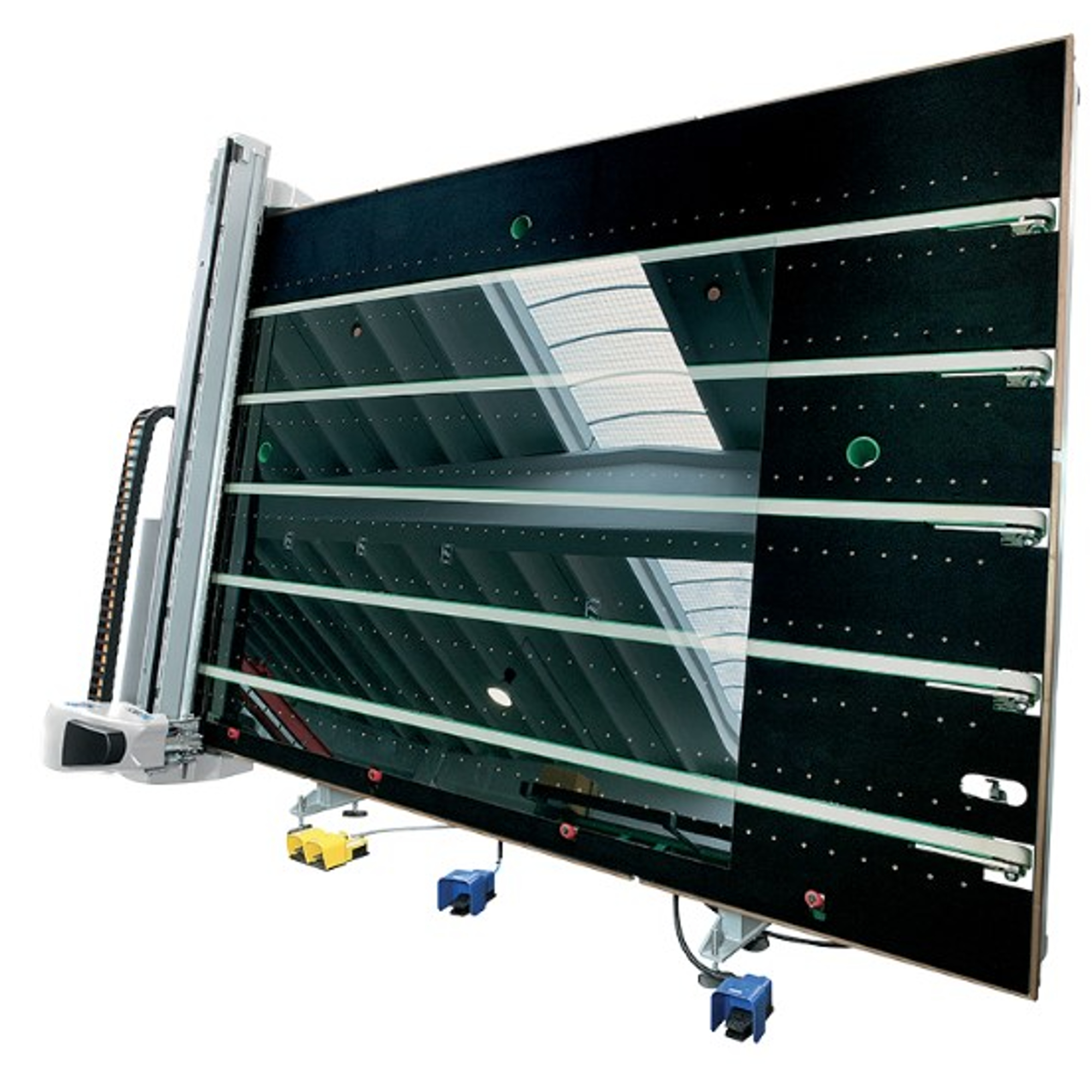

Loading, cutting, grinding, marking and breakout table fully integrated with manual or automatic loading and breakout modules and it can be coupled with cutting tables for laminated glass. The 363 BCS cutting table is available in the two fixed and tilting versions and is complete with air cushion with quick closing and belt conveyor, automatic selection of cutting pressures, Shape Scanner + Scan Cad, optimiser on the machine and BCMS Windows.
Machine brochure
BCS family presentation
| Technical features | 363BCS Regular | 363BCS Jumbo |
|---|---|---|
| Automation level | ★★★★☆ | ★★★★☆ |
| Maximum bridge speed | 140m/min | 140m/min |
| Maximum carriage speed | 200m/min | 200m/min |
| Maximum grinding speed with Easy deletion | 80m/min | 80m/min |
| Maximum grinding speed with LMT | 160m/min | 160m/min |
| Cutting accuracy on straight processes | ± 0,15mm | ± 0,15mm |
| Standard thicknesses | 2mm – 19mm | 2mm – 19mm |
| Optional thickness | 19mm – 25mm | 19mm – 25mm |
| Worktable height | 930 ± 40mm | 930 ± 40mm |
| Dimensions | 5390 x 4460mm | 7125 x 4191mm |
| Maximum dimension of processable sheet | 4600 x 3355mm | 6100 x 3355mm |
● available option , ○ not available option
| Technical features | 363BCS Regular | 363BCS Jumbo |
|---|---|---|
| Assembly For Low-E Edge Deletion By Cup Wheel | ● | ● |
| Assembly For Low-E Edge Deletion By Peripheral Wheel | ● | ● |
| Assembly lam shape includes easy-deletion | ○ | ○ |
| Automatic Frontal Squaring Lug | ● | ● |
| Automatic Lateral Squaring Lug | ● | ● |
| Additional Breakout Bar | ● | ● |
| Additional Longitudinal Breakout Bar | ● | ● |
| Air Conditioning System For Electrical Cabinet | ● | ● |
| Air Cushion | ○ | ○ |
| Automatic Squaring Lugs | ● | ● |
| Automatic Tilting Arms | ○ | ● |
| Backward Transport – From Table To Loader | ● | ● |
| Backward Transport – From Breakout To Cutting Table | ● | ● |
| Breakout Bars Assembly (1+1) | ● | ○ |
| Breakout Bars Assembly (2+1) | ○ | ● |
| Cutting Head Approaching Device | ● | ● |
| Double Cutting Oil Tank (Already Included On Machines With Assembly E/F/L/Q/T) | ● | ● |
| Foot Pedal Switch For Slow Transport – Loading Table Joined With Belts Cutting Table | ● | ● |
| Assembly For Labeling System | ● | ● |
| Glass Cleaning Kit For Labeling System | ● | ● |
| GS – Cutting Up To 25mm Glass Thickness | ● | ● |
| Kit For Covering The Slots Created By The Absence Of Breakout Bars | ○ | ○ |
| Kit For Minimum Glass Transporto (400x300mm) Mandatory For Combination With 548LAM + Kit LMC-D-E108 | ● | ● |
| Kit For Minimum Glass Transporto (500x500mm) Mandatory For Combination With 548LAM | ● | ● |
| Ultrasonic sensor | ● | ● |
| Lean-To Device | ● | ● |
| Loading LuGS | ● | ● |
| Lugs For Glass (Max 19mm) Transport On Air Cushion | ○ | ○ |
| Manual Tilting Arms | ○ | ● |
| Sandblast Plastic Cutting | ● | ● |
| Tilting Motion Assembly | ● | ● |
| Vacuum Cups For Glass (Max 19mm) Transport On Air Cushion | ○ | ○ |
| Vacuum Cups For Glass Transport On Air Cushion For Dual Line With 520LAMe | ○ | ○ |
| Double Control (Foot Pedal) For 1 Breakout Bar | ● | ● |
| Connection To An Existing Loading Machine | ● | ● |
| Optimization + Labels + Shape Catalogue + Cad | ● | ● |
