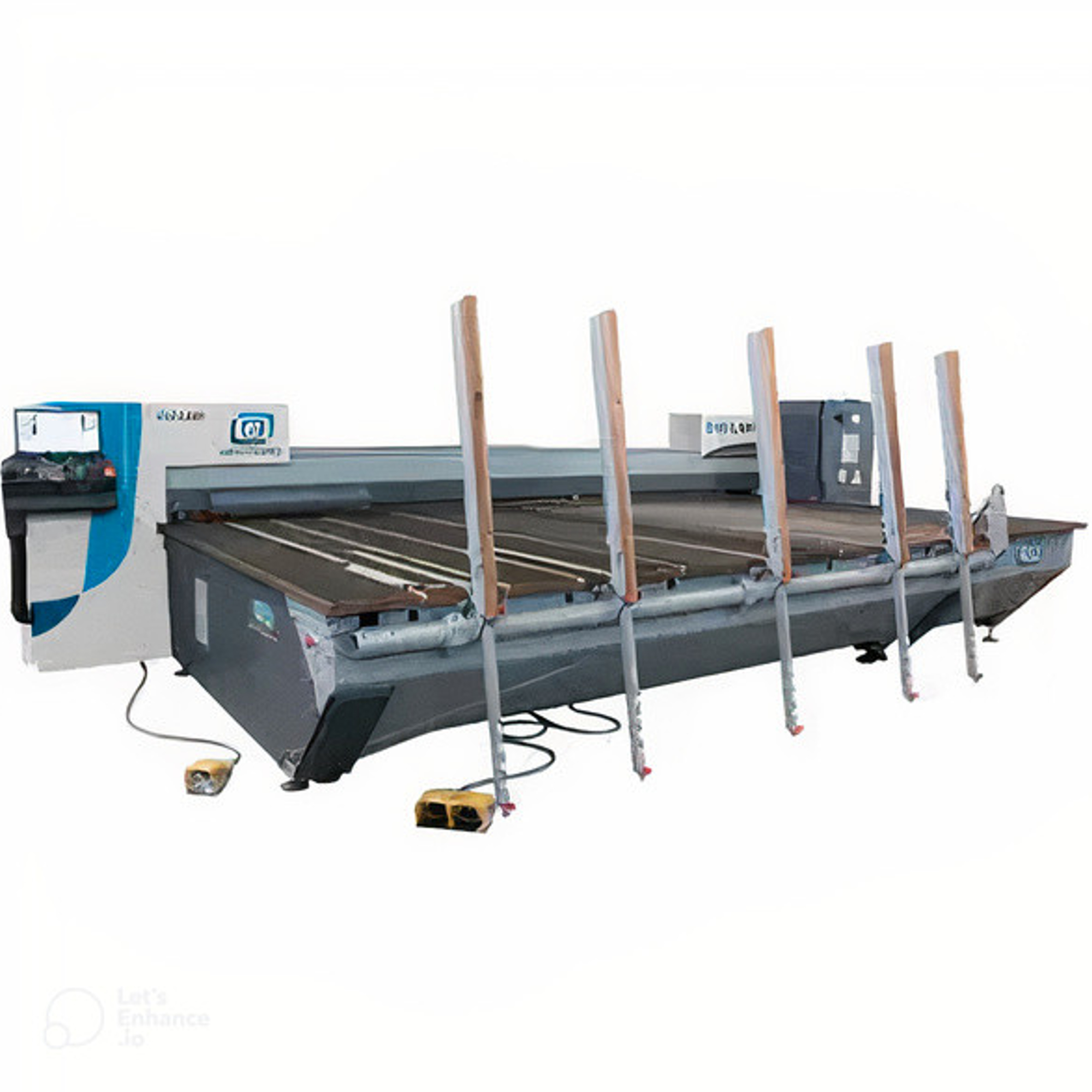

520 LAMe

520 LAMe is out best-seller meeting any customer’s need for the production of laminated glass. The automatic control of all parameters concerning the glass cut and positioning, and the possibility of removing a glass piece of 20 mm only, together with the removal of the low-e are the top class features of this machine.

machine brochure

family presentation

Technical features 520 LAMe
Automation level ★★★★☆
Cutting speed 100m/min
Max cut 3700 – 4600mm
Min cut 250mm
Min thickness 2.2.0,38 PVB mm
Max thickness 8.8.4,56 PVB mm
Max squaring length 3210mm
Max weight loadable on arms 450Kg
Tollerance ± 0,5mm
Height of working table 930 ± 20mm
Grinding speed with Easy deletion < 80m/min
