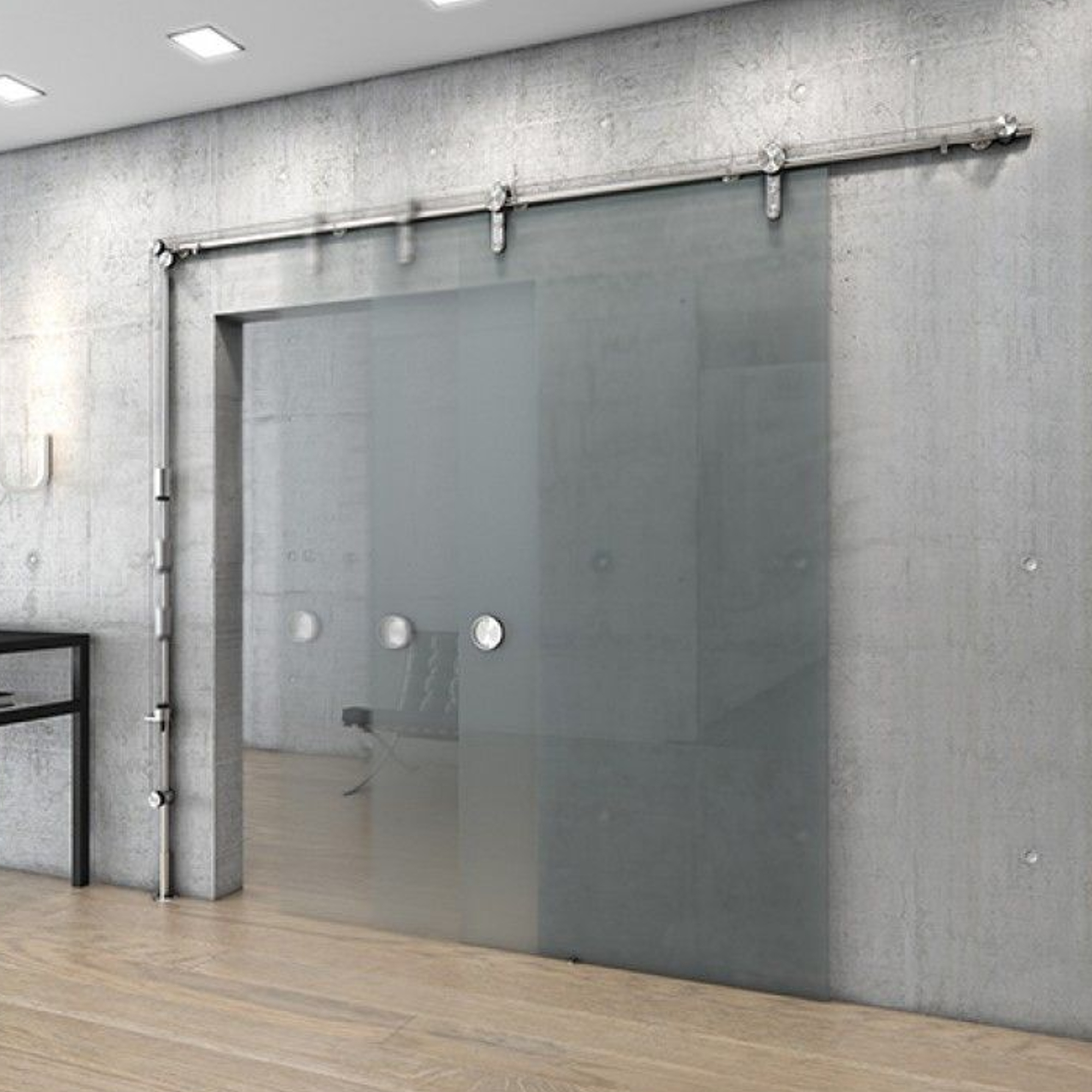

Flexible sliding door system for free passage of light. Exposed stainless steel point support fittings, contemporary aesthetics with a modern finish.
8300 presentation
technical specifications
installation guide
| Technical features |  Single leaf |
 Double leaf |
 Single leaf |
 Double leaf |
|---|---|---|---|---|
| Fixing | Wall / Glass | Wall / Glass | Wall / Glass | Wall / Glass |
| Material | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |
| Finish |  Matt inox |
Matt inox |
Matt inox |
Matt inox |
| RAL paint | ✘ | ✘ | ✘ | ✘ |
| Glass pane thickness | 8mm – 10mm | 8mm – 10mm | 8mm – 10mm | 8mm – 10mm |
| Max door width | 1200mm | 1200mm | 1200mm | 1200mm |
| Max door weight | 75Kg | 75Kg | 75Kg | 75Kg |
| 8300 consists of : |
|---|
| Technical features | Single leaf wall fixing |
Double leaf wall fixing |
Single leaf glass fixing |
Double leaf glass fixing |
|---|---|---|---|---|

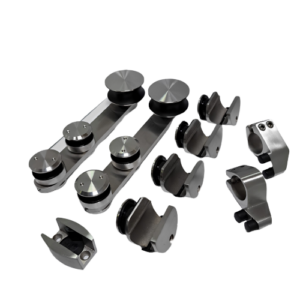

| Sliding leaf set in glass |  1x 107-1462A | Sliding single leaf door set glass – glass |
2x 107-1462A | Sliding single leaf door set glass – glass |
1x 107-1462A | Sliding single leaf door set glass – glass |
2x 107-1462A | Sliding single leaf door set glass – glass |

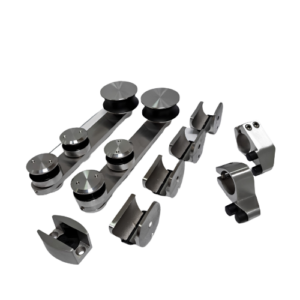

| Sliding leaf set in wall |  1x 107-1462Β | Sliding single leaf door set glass – wall |
2x 107-1462Β | Sliding single leaf door set glass – wall |
1x 107-1462Β | Sliding single leaf door set glass – wall |
2x 107-1462Β | Sliding single leaf door set glass – wall |

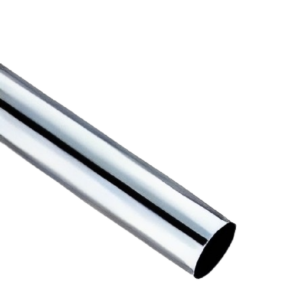

| Aluminium rail |  1x 71-62 | Aluminium rail |
1x 71-63 | Aluminium rail |
1x 71-62 | Aluminium rail |
1x 71-63 | Aluminium rail |
| Additional system accessories : |
|---|
| Lock | |||
|---|---|---|---|
 20-65 | Sliding door lock with hook and handle |
 20-49 | Lock keeper with handle |
 20-183 | Lock keeper with handle |
 20-185 | Lock keeper with handle and glass strike |
| Handle | |||
|---|---|---|---|
 60-224 | Round handle for sliding door |
 60-225 | Round handle Φ60 |
||
| Fixing in frame | |||
|---|---|---|---|

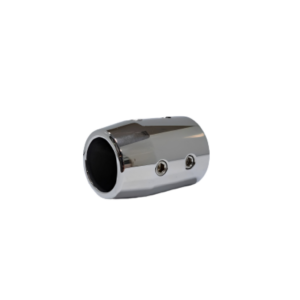

 107-862 | Wall guide bracket Φ25 |
|||
