DV-14

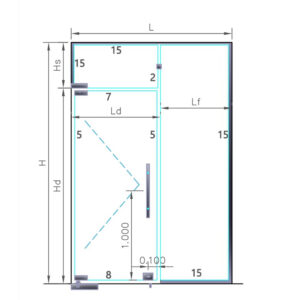

Single leaf opening door with skylight and 2 fixed panels

dv-14 presentation

technical specifications

installation guide

Χαρακτηριστικά

Extras

Χαρακτηριστικά

Technical features	prh/prd anodized	pri anodized	dorma polished
Material	Aluminium	Aluminium	Stainless steel 304
Finish	Anodized	Anodized	Polished
RAL paint	Available on request	Available on request	Available on request
Glass pane thickness	8mm – 12mm	10mm	10mm
Max door width	up to 1400mm	up to 1400mm	up to 1400mm
Max door weight	up to 200kg	up to 200kg	up to 200kg
Aluminium case	✔	✔	✔

Extras

	prh/prd anodized	pri anodized	dorma polished
Top pivot	–	–	–
Top hinge	1x 10-122	1x 10-32	1x 10-176
Top hinge covers	Included on the hinge	Included on the hinge	1x 99-44
Bottom hinge	1x 10-112	1x 10-30	1x 10-175
Bottom hinge covers	Included on the hinge	Included on the hinge	1x 99-44
Handle	–	–	–
Floor door lock	1x 20-66	1x 20-14	1x 20-110
Floor door lock cover	Included on the floor door lock	Included on the floor door lock	99-45
Floor door lock cylinder	Included on the floor door lock	Included on the floor door lock	1x 23-17
Spring lock keeper	1x 24-19	1x 24-19	1x 24-19
Floor bearing pivot	–	–	–
Floor spring	Free selection	Free selection	Free selection
Over panel glass pivot patch fitting	–	–	–
Over panel glass pivot patch fitting covers	–	–	–
Right over panel glass pivot patch fitting	1x 11-19	1x 11-8	1x 11-23
Right over panel glass pivot patch fitting covers	–	–	1x 99-40
Left over panel glass pivot patch fitting	1x 11-19	1x 11-6	1x 11-23
Left over panel glass pivot patch fitting covers	–	–	1x 99-40
Glass to wall patch fitting	–	–	–
Glass to wall patch fitting covers	–	–	–
Glass to glass patch fitting	2x 13-21	–	2x 13-15
Glass to glass patch fitting covers	–	–	2x 99-42
Aluminium profile	107-696	107-696	107-696

Combined with :

Set of door closer
Floor spirng/ choice of one	100-1	100-5	100-6	100-4
