DV-23

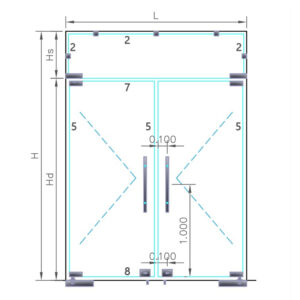

Double leaf opening door with skylight

dv-23 presentation

technical specifications

installation guide

Χαρακτηριστικά

Extras

Χαρακτηριστικά

Technical features	prh/prd anodized	pri anodized	dorma polished
Material	Aluminium	Aluminium	Stainless steel 304
Finish	Anodized	Anodized	Polished
RAL paint	Available on request	Available on request	Available on request
Glass pane thickness	8mm – 12mm	10mm	10mm
Max door width	up to 1400mm	up to 1400mm	up to 1400mm
Max door weight	up to 200kg	up to 200kg	up to 200kg
Aluminium case	✘	✘	✘

Extras

Technical features		prh/prd anodized	pri anodized	dorma polished
	Top pivot	–	–	–
	Top hinge	2x 10-122	2x 10-32	2x 10-176
	Top hinge covers	Included on the hinge	Included on the hinge	2x 99-44
	Bottom hinge	2x 10-112	2x 10-30	2x 10-175
	Bottom hinge covers	Included on the hinge	Included on the hinge	2x 99-44
	Handle	–	–	–
	Floor door lock	2x 20-66	2x 20-14	2x 20-110
	Floor door lock cover	Included on the floor door lock	Included on the floor door lock	2x 99-45
	Floor door lock cylinder	Included on the floor door lock	Included on the floor door lock	2x 23-17
	Spring lock keeper	2x 24-19	2x 24-19	2x 24-19
	Floor bearing pivot	–	–	–
	Floor spring	Free selection	Free selection	Free selection
	Over panel glass pivot patch fitting	2x 44-15	2x 44-5	2x 44-22
	Over panel glass pivot patch fitting covers	–	–	2x 99-49
	Glass to wall patch fitting	2x 45-50	–	5x 45-32
	Glass to wall patch fitting covers	–	–	5x 99-41

Combined with :

Set of door closer
Floor spirng/ choice of one	100-1	100-5	100-6	100-4
