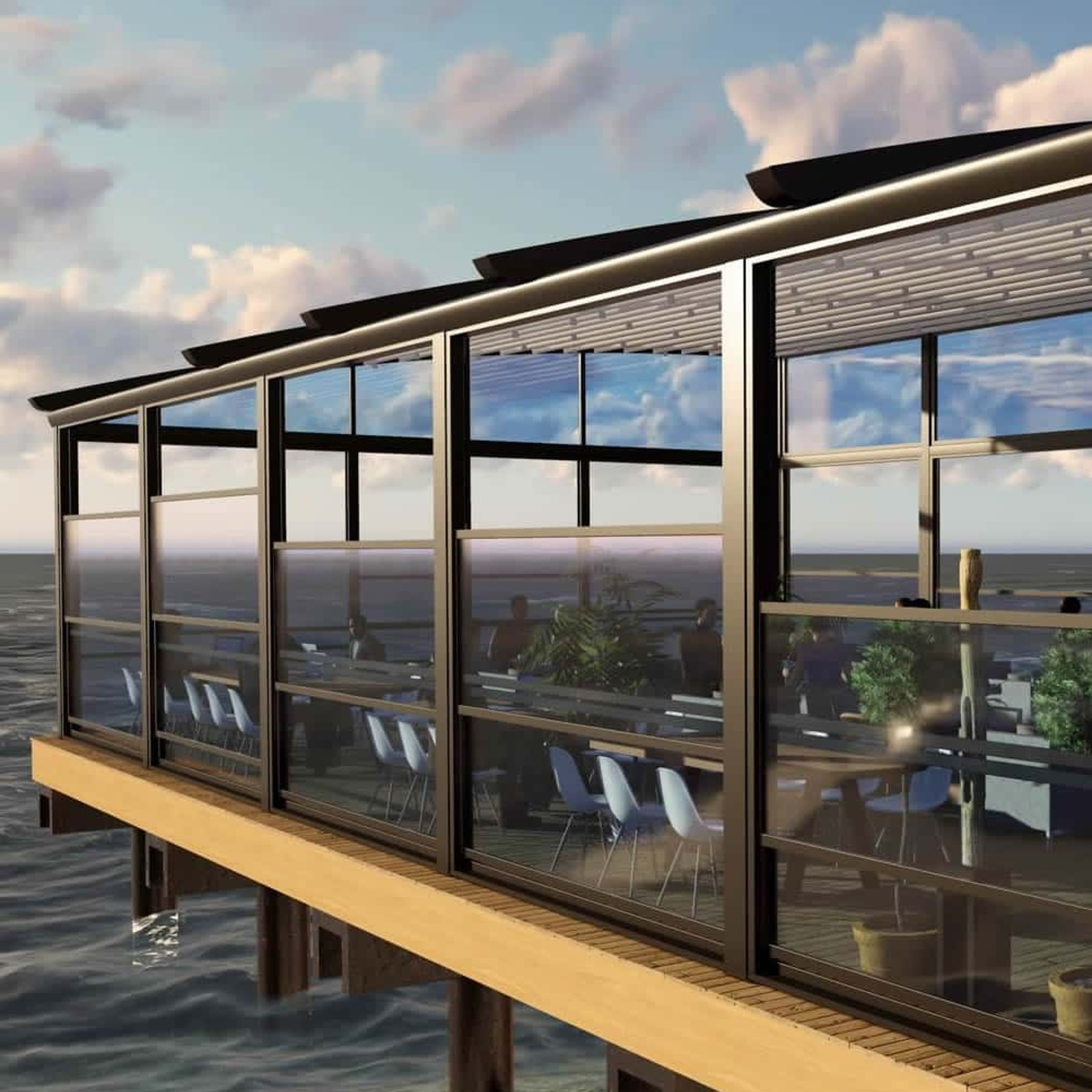

The iGlass Gi Al100 aluminium electric retractable guillotine system offers ease of assembly and installation. It has the ability to cover large openings and includes modern thin aluminium profiles and durable electrical mechanisms.
gi al100 presentation
technical specifications
installation guide
| Technical features |  Sliding downwards |
 Sliding upwards |
 Two sliding downwards |
 Middle sliding upwards |
 Middle sliding downwards |
|---|---|---|---|---|---|
| Number of panels | 2 panels | 2 panels | 3 panels | 3 panels | 3 panels |
| Glazing | Single & double | Single & double | Single & double | Single & double | Single & double |
| Glass pane thickness | 8mm – 16mm | 8mm – 16mm | 8mm – 16mm | 8mm – 16mm | 8mm – 16mm |
| Min height | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm |
| Max height | 3500mm | 3500mm | 3500mm | 3500mm | 3500mm |
| Mix width | 1500mm | 1500mm | 1500mm | 1500mm | 1500mm |
| Max width | 3500mm | 3500mm | 3500mm | 3500mm | 3500mm |
| Gi Al100 consists of : |
|---|
| Technical features | Gi Al100 |
|---|---|
| Aluminium case | ![](http://www.iglass.gr/wp-content/uploads/2023/02/10-1101-removebg-preview-300x300.png" alt="" width="300" height="300" />) 10-1101 | Aluminium case profile |
| Aluminium case |  10-1102 | Aluminium case profile |
| Single glazing aluminium case |  10-2101 | Aluminium profile |
| Box front and back cover profile |  20-4001 | Box front and back cover profile |
| Bottom cover profile |  20-4002 | Bottom cover profile |
| System rail profile |  10-6001 | Aluminium rail profile |
| Case adapter |  10-6002 | Case adapter |
| Rail cover profile |  10-6003 | Rail cover profile |
| Clamp adapter |  10-6004 | Clamp adapter |
| Middle clamp cover |  10-6005 | Clamp cover |
| Clamp cover |  10-6006 | Clamp cover |
| Hook cover |  48-7101 | Hook cover |
| PVC cap |  50-3105 | PVC cap |
| Connection blade |  51-6104 | Engine connection blade |
| Engine connection cap |  50-3103 | Engine connection set |
| Triger joint |  60-662 | Triger joint |
| Rulman sheet iron cap |  49-109 | Rulman sheet iron cap |
| Call corner |  60-1755 | Call corner |
| Bolt |  61-2107 | Engine connection bolt |
| Rulman |  49-111 | Rulman |
| Trigger joint |  50-1103 | Trigger joint |
| Adjustable socket |  51-6103 | Adjustable socket |
| Sheet iron cap |  91-6575 | Sheet iron cap |
