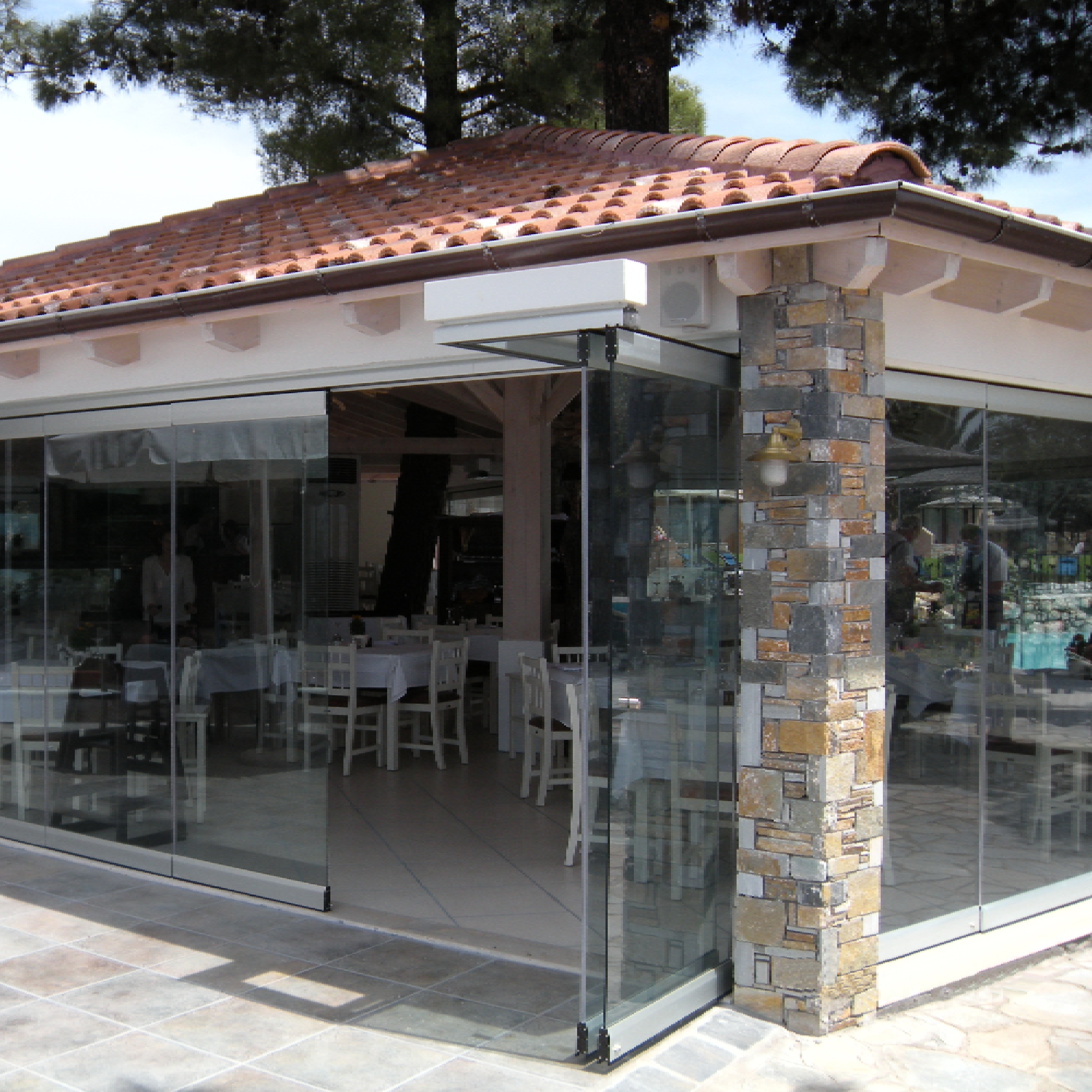

i-Panel is the newest folding independent sheet system, providing unlimited sheet movement possibilities for bypassing
i-panel presentation
technical specifications
installation guide
i-Panel is the newest folding independent sheet system, providing unlimited sheet movement possibilities for bypassing
i-panel presentation
technical specifications
installation guide
| Technical features | i-panel |
|---|---|
| Material | Aluminium |
| Finish |  Anodized |
| RAL paint | Available on request |
| Glass pane thickness | 10 – 12mm |
| Number of folding sheets | Unlimited |
| Max length | 1000mm |
| Max height | 2800mm |
| Aluminium profile height | 75mm |
| Aluminium profile width | 70mm |
| Bottom aluminium profile height | 98mm |
| Lock | ● Lock ● Latch |
| i-Panel consists of : |
|---|
| Technical features | i-Panel |
|---|---|
| Aluminium rail profile |  107-1508 | Aluminium profile |
| Bottom aluminium profile |  107-47 | Bottom aluminium profile |
| Metal pivot |  107-50 | Upper pivot |
| Front pulley |  107-1510 | Front pulley |
| Back pulley |  107-1511 | Back pulley |
| Side cap |  107-349 | Side cap |
 107-350 | Oval side cap |
|
 107-351 | Side cap |
|
 107-705 | Allen side cap |
|
| Retaining bolt |  107-64 | Retaining bolt |
| Planarity angle |  107-987 | Planarity angle for aluminium case |
| Alignment pin |  107-1380 | Alignment pin |
| Floor bearing pivot |  107-1190 | Floor bearing pivot |
| Handle |  60-228 | Round knob |
| Spring lock keeper |  24-19 | Spring lock keeper Φ12 |
| Lock |  20-59 | Double lock |
 23-17 | Cylinder 27-27mm for lock ( double ) |
|
| Latch |  107-1189 | Latch pin set |
| Bracket |  107-1219 | Bracket |
| Brush |  70-115 | Brush sealant hard |
70-88 | Brush sealant hard |
|
| Sealants |  70-180 | Sealant chair type profile with flexible gasket |
70-152 | Sealant chair type profile with flexible gasket |
|
70-153 | Sealant chair type profile with flexible gasket |
|
 70-189 | Sealant chair type profile with non flexible gasket |
|
| Polycarbonic type “Π” |  70-188 | Sealant profile type “Π” with brush canal |
| Additional system accessories : |
|---|
| Handle | |||
|---|---|---|---|
 60-259 | Handle bar |
|||
| Floor springs | |||
|---|---|---|---|
 30-43 | Floor spring 7305 |
 30-23 | Floor spring M60 |
||
