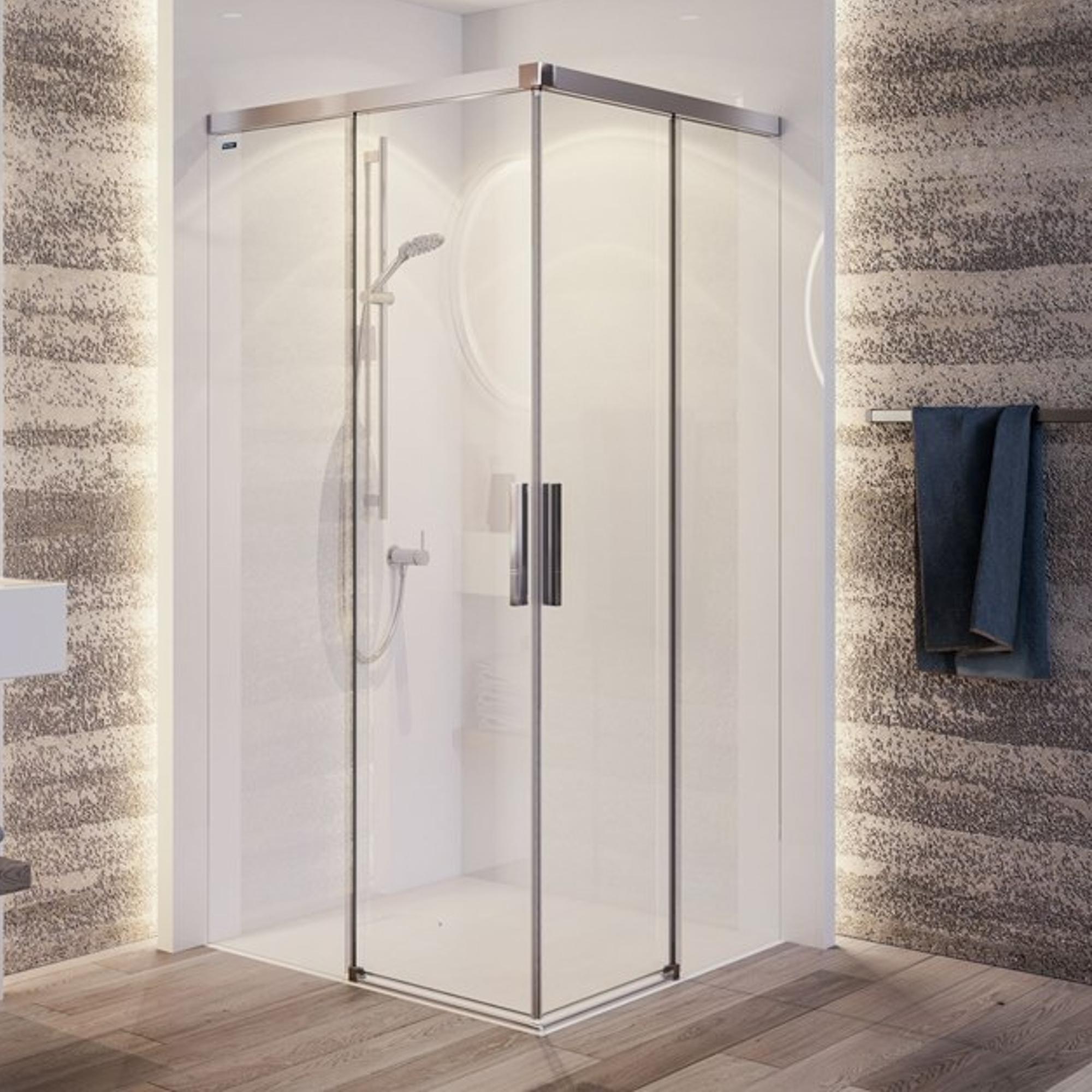

IN 3652 Aluminium system is flexible and easy to install. It consists of a aluminium rail and aluminium fittings. It gives the space a minimalist feel as the rolling components are integrated into the frame.
in 3652 aluminium presentation
technical specifications
installation guide
| Technical features |  1 fixed & 1 sliding |
 2 fixed & 1 sliding |
 2 fixed & 2 sliding |
 2 fixed & 1 sliding |
 2 fixed & 2 sliding |
|---|---|---|---|---|---|
| Shower layout | Straight layout | Angular layout | |||
| Min opening | – | ||||
| Max opening** | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm |
| Max height** | 2000mm | 2000mm | 2000mm | 2000mm | 2000mm |
| Glass pane thickness | 8mm – 10mm | 8mm – 10mm | 8mm – 10mm | 8mm – 10mm | 8mm – 10mm |
| Type of glazing | Tempered / Laminate | Tempered / Laminate | Tempered / Laminate | Tempered / Laminate | Tempered / Laminate |
| Fixing | Wall | Wall | Wall | Wall | Wall |
| Finish | Matt stainless steel | Matt stainless steel | Matt stainless steel | Matt stainless steel | Matt stainless steel |
| Shower kit | ✔ | ✔ | ✔ | ✔ | ✔ |
| Rolling guide | ✔ | ✔ | ✔ | ✔ | ✔ |
| Rolling guide cover | ✔ | ✔ | ✔ | ✔ | ✔ |
| Type “U” profile | ✔ | ✔ | ✔ | ✔ | ✔ |
| Polycarbonate sealants | ✔ | ✔ | ✔ | ✔ | ✔ |
| Angle connectors | – | – | – | ✔ | ✔ |
**For special cases please contact the iGlass Engineering Department
| In 3652 aluminium consists of : |
|---|
| Technical features | 1 fixed & 1 sliding |
2 fixed & 1 sliding |
2 fixed & 2 sliding |
2 fixed & 1 sliding |
2 fixed & 2 sliding |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| Glass | 8mm | 10mm | 8mm | 10mm | 8mm | 10mm | 8mm | 10mm | 8mm | 10mm |

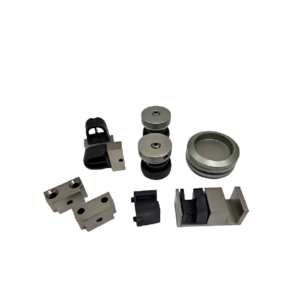

| Shower kit |  107-1255 | Sliding shower kit |
107-1255 | Sliding shower kit |

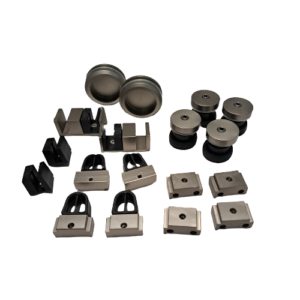

 107-1307 | Sliding shower kit |
 107-1260 | Sliding shower kit |
 107-1272 | Sliding shower kit |
|||||
| Type “U” profile | Included in kit | Included in kit | Included in kit | Included in kit | Included in kit | |||||
| Vertical sealant |  70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
70-150 | Sealant profile with flexible gasket 90° |
70-151 | Sealant profile with flexible gasket 90° |
| Sealant with magnet | – | – |  70-146 | Sealant profile with magnet 90° |
70-147 | Sealant profile with magnet 90° |
– | 70-146 | Sealant profile with magnet 90° |
70-147 | Sealant profile with magnet 90° |
|||
| Sealant bubble type |  70-154 | Sealant bubble type profile |
70-181 | Sealant bubble type profile |
– | – | 70-154 | Sealant bubble type profile |
70-181 | Sealant bubble type profile |
– | |||
| 90° left-hand connector | – | – | – |  107-1304 | Left-hand fixed connector |
107-1304 | Left-hand fixed connector |
– | ||||
| 90° right-hand connector | – | – | – |  107-1303 | Right-hand fixed connector |
107-1303 | Right-hand fixed connector |
– | ||||
| Corner frame connector | – | – | – | – |  107-1306 | Corner frame connector |
107-1306 | Corner frame connector |
||||
| Corner bar connector | – | – | – | – |  107-1305 | Corner bar connector |
107-1305 | Corner bar connector |
||||
| Additional system accessories : |
|---|
| Type “U” profile | |||
|---|---|---|---|
 107-1258 | Aluminium profile type “U” |
|||
| Fittings | |||
|---|---|---|---|
 45-39 | Glass to wall patch fitting |
 45-5 | Glass to wall patch fitting |
||
| Support | |||
|---|---|---|---|
 41-642 | Glass to wall corner fixed connector 90° |
 107-702 | Fixed bracket with guide rail |
||
| Floor guide | |||
|---|---|---|---|
 107-1178 | Sliding shower floor guide |
|||
