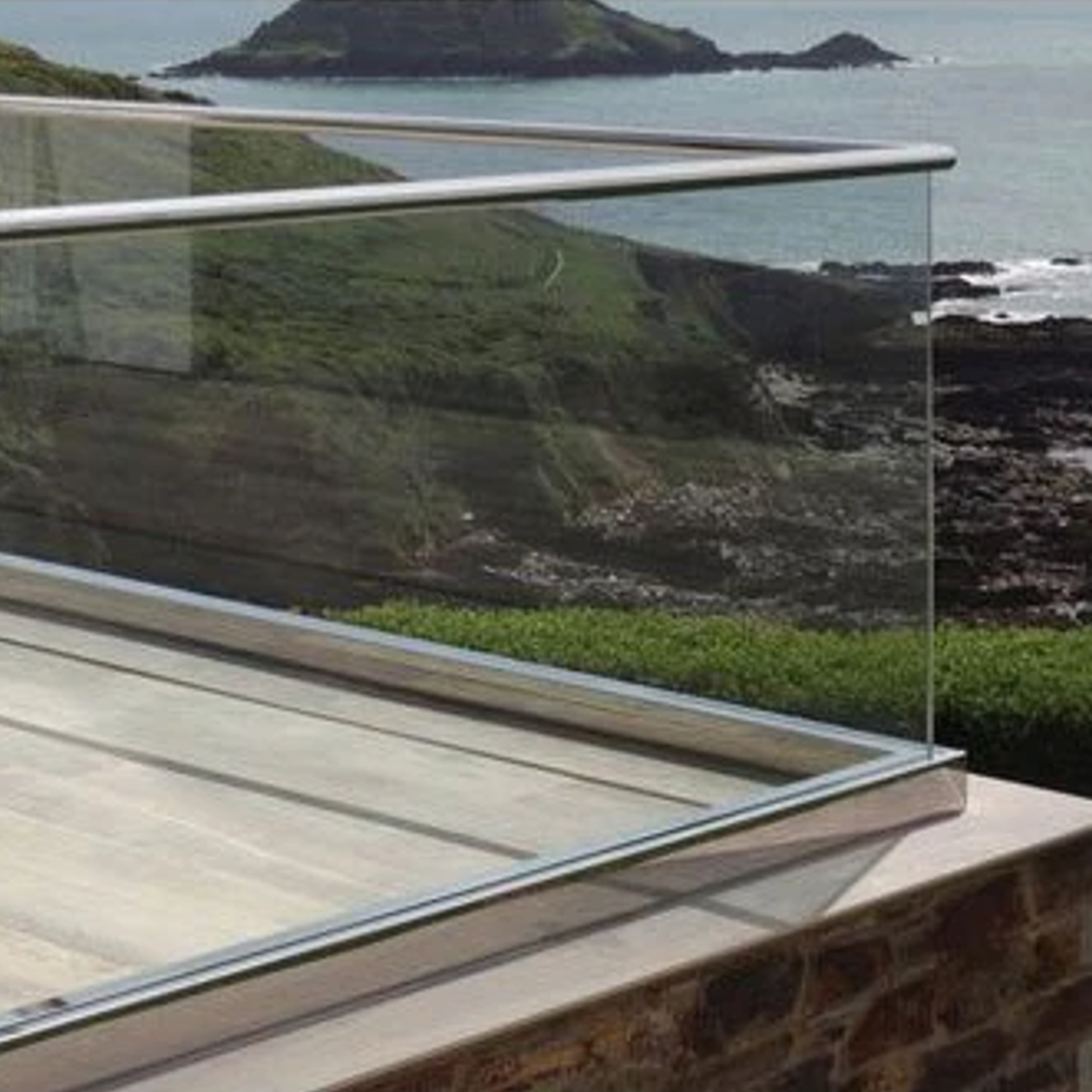

The iS-6973 system is for the floor mounting of glazing on a finished floor with adjustable glazing. With easy and direct installation the iS-6973 system offers added value to the construction. Its innovative design gives an excellent aesthetic result and reduces the need for system maintenance to a minimum.
iS-6973 presentation
technical specifications
installation guide
| Technical features | iS-6973 |
|---|---|
| Finish |  Polished SSSSMill finish |
| RAL paint | Available on request |
| Aluminium profile height | 73mm |
| Aluminium profile width | 69mm |
| Aluminium profile length | 6.1m |
| Fixing | Flooring |
| Adjustable | ✔ up to 10mm |
| Type of glazing | Laminate |
| Glass pane thickness | 16 – 17.5mm |
| Max glazing height | 600mm |
| Max glazing length | Unlimited |
| Cutting on measures | ✔ |
| iS-6973 consists of : |
|---|
| Technical features | 8+8 glass pane |
|---|---|

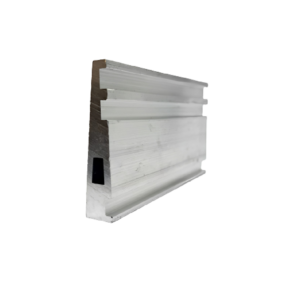

| Aluminium profile |  41-662 | Aluminium profile |

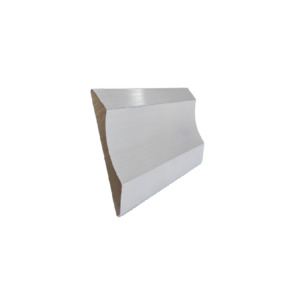

| Aluminium wedge |  41-689 | Aluminium wedge |
| Aluminium wedge |  41-688 | Aluminium wedge |
| Gasket |  41-714 | Gasket |

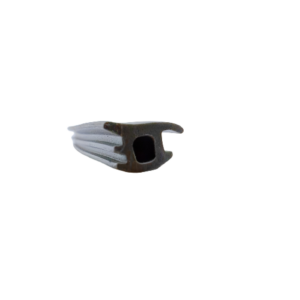

| Elastic gasket |  41-715 | Elastic gasket |

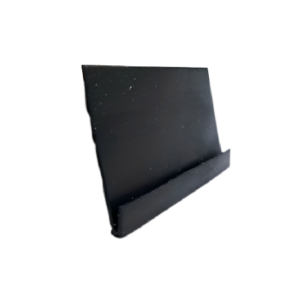

| Elastic gasket for wedge |  41-716 | Elastic gasket for wedge |
| Gasket for wedge |  41-718 | Gasket for wedge |
| Additional system accessories : |
|---|
| Caps | ||
|---|---|---|

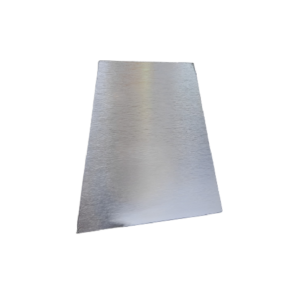

 41-748 | Side cap for balcony base |
||
| Handrails | |||
|---|---|---|---|
 iK-410 | Aluminium handrail Φ50 with cutout |
iK-575 | Aluminium handrail LED Φ50 with cutout |
iK-656 | Aluminium handrail Φ50 with 22mm cutout |
iK-442 | Aluminium handrail Φ50 with 12mm cutout |
iK-480 | Aluminium handrail Φ50 2mm |
|||
