Suspended glass facades (canopies) are the modern application of glass structures of high architectural aesthetics, which is applicable to all modern buildings. Our specialized team delivers studies, detail drawings and implementation of the structures, which with the manufacture of special glass panels meet all modern requirements.

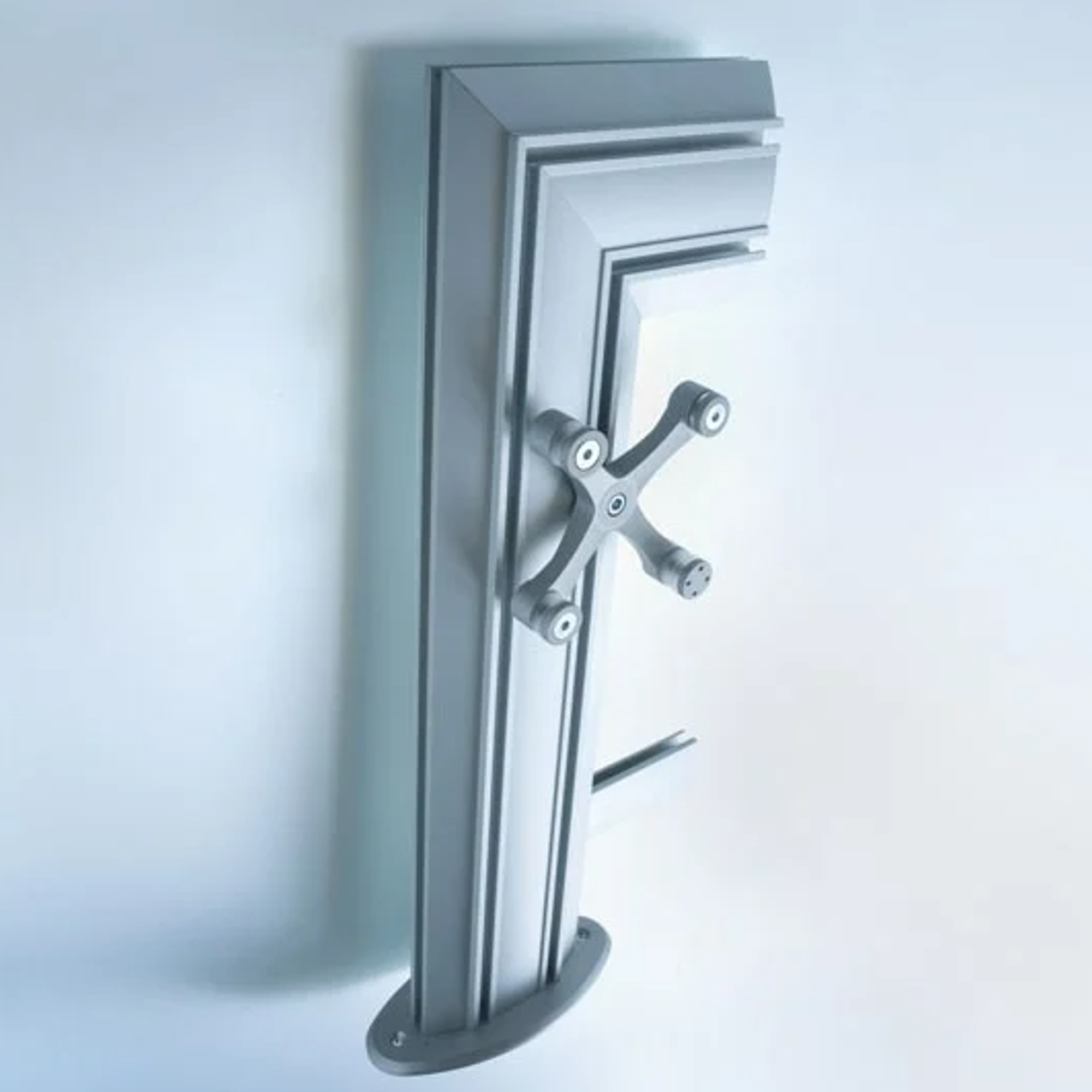

mini by oxidal presentation
technical specifications
installation guide
| Technical features | Mini by Oxidal |
|---|---|
| Material | Aluminium or special polymer |
| Finish |  Matt chrome |
| Endurance | 50kg |
| Max prifile length | 6m |
| Glass | 8mm – 12mm |
| RAL paint | Available on request |
| Cutting on measures | Available on request |
| Available : |
|---|
| Brackets | |||
|---|---|---|---|

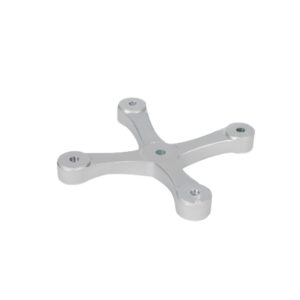

 41-136 | Bracket spider 100mm MINI |

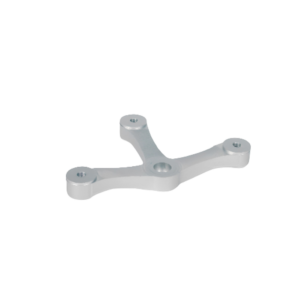

 41-154 | Bracket spider 100mm MINI |

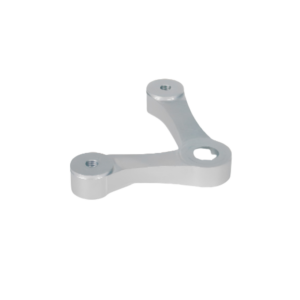

 41-137 | Bracket spider 100mm MINI |
 41-154 | Bracket spider 50mm MINI |

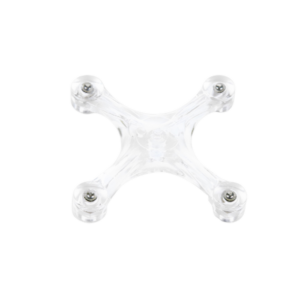

 41-548 | Spider bracket |
 41-549 | Spider bracket |
 41-550 | Spider bracket |
|
| Heads | |||
|---|---|---|---|

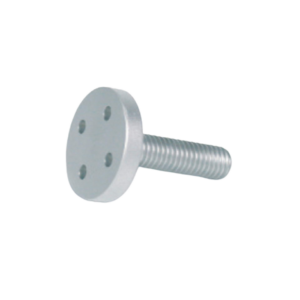

 41-139 | Flat head Φ25mm hole Φ10mm MINI |

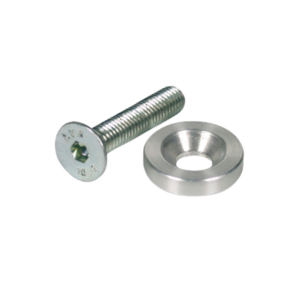

 41-155 | Milling head Φ25mm hole Φ10mm MINI |
41-532 | Flat head Φ25mm hole Φ10mm MINI |
|
| Aluminium profile | |||
|---|---|---|---|

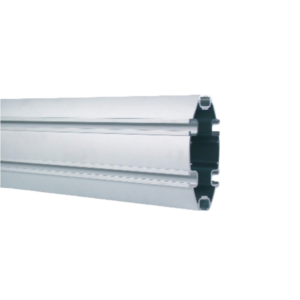

 41-140 | Aluminium column 136x52mm MINI |

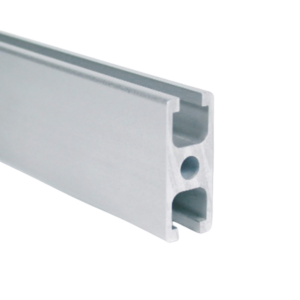

 41-141 | Aluminium profile for column connection 45×18.5mm MINI |

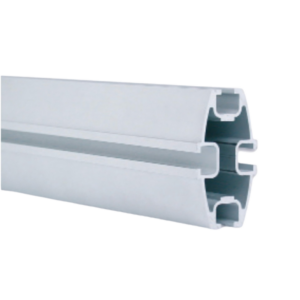

 41-142 | Aluminium column 78.5×18.5mm MINI |

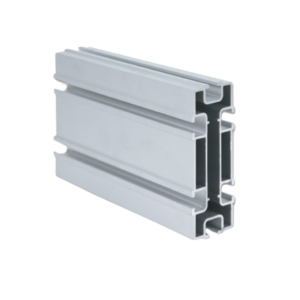

 41-535 | Aluminium column 120x40mm MINI |

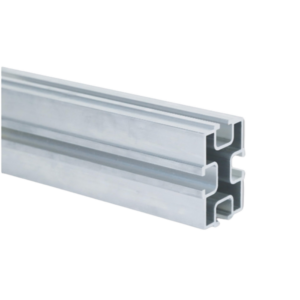

 41-536 | Aluminium column 60x40mm MINI |
|||
| Foots | |||
|---|---|---|---|

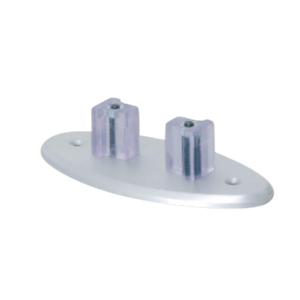

 41-144 | Large column base |

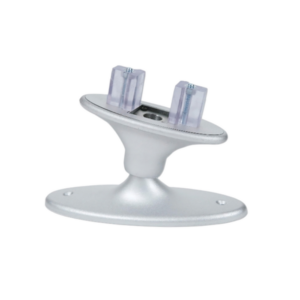

 41-539 | Articulated column base |

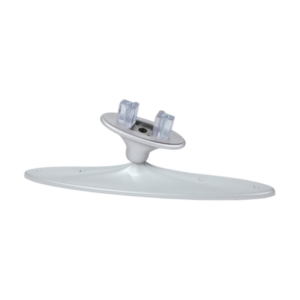

 41-541 | Hinged column base BIG |

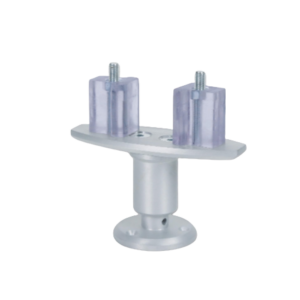

 41-534 | Adjustable base for column |

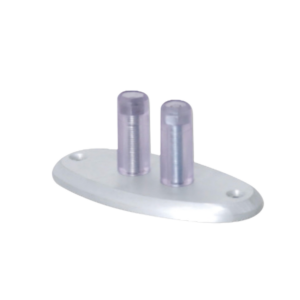

 41-145 | Fixed base for column |

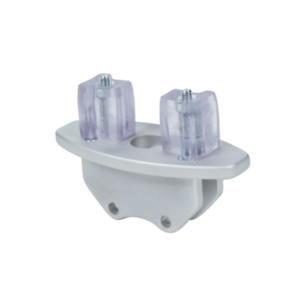

 41-545 | Base for 6-way modular connector |

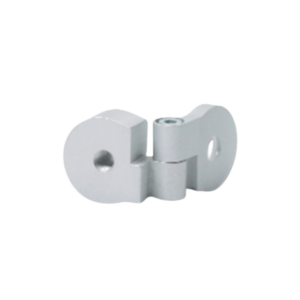

 41-552 | Adjustable base for corners |
|
| Hinges & supports | |||
|---|---|---|---|

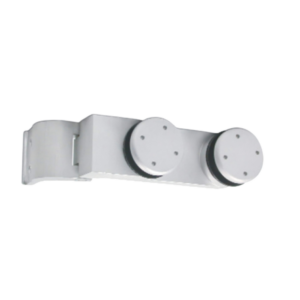

 41-143 | Side hinge for MINI columns |

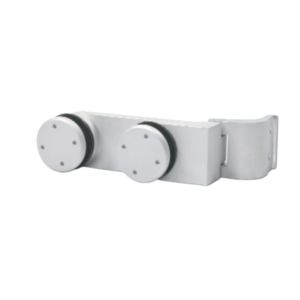

 41-152 | Hinge side milling for MINI columns |

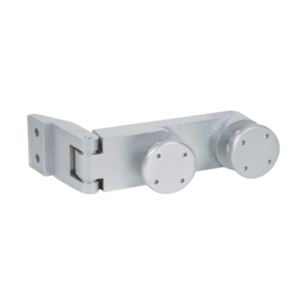

 41-537 | Side pulling hinge with milling head |
41-538 | Side pulling hinge with flat head |

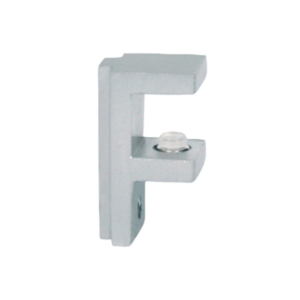

 41-158 | Shelf bracket up to 10mm MINI |

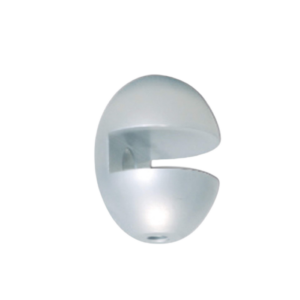

 41-531 | UOVO shelf bracket |
||
| Connectors | |||
|---|---|---|---|
 41-544 | 6 way articulated link connector |
 41-546 | “T” connection for 6-way modular connector |
 41-547 | Double “T” connection for 6-way modular connector |
 41-147 | Screw M8 spider – column |
 41-150 | Screw nut M6 hinge hinge – column MINI |
41-146 | M8 spider screw nut – MINI column |
 41-151 | M6 hinge screw – column MINI |
 41-157 | Connector straight column profile MINI |
 41-148 | Corner column connector – MINI profile |
 41-156 | Connector corner column – MINI column |
 41-551 | Connection profile – bracket 45° |
|
| Covers | |||
|---|---|---|---|

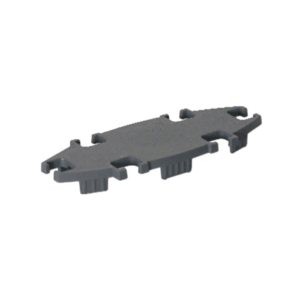

 41-553 | Cover cap for column |

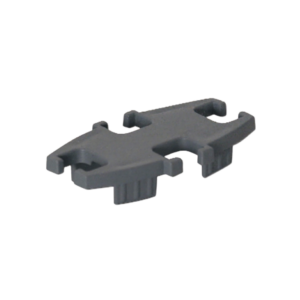

 41-554 | Cover cap for column |
||
