Oxidal

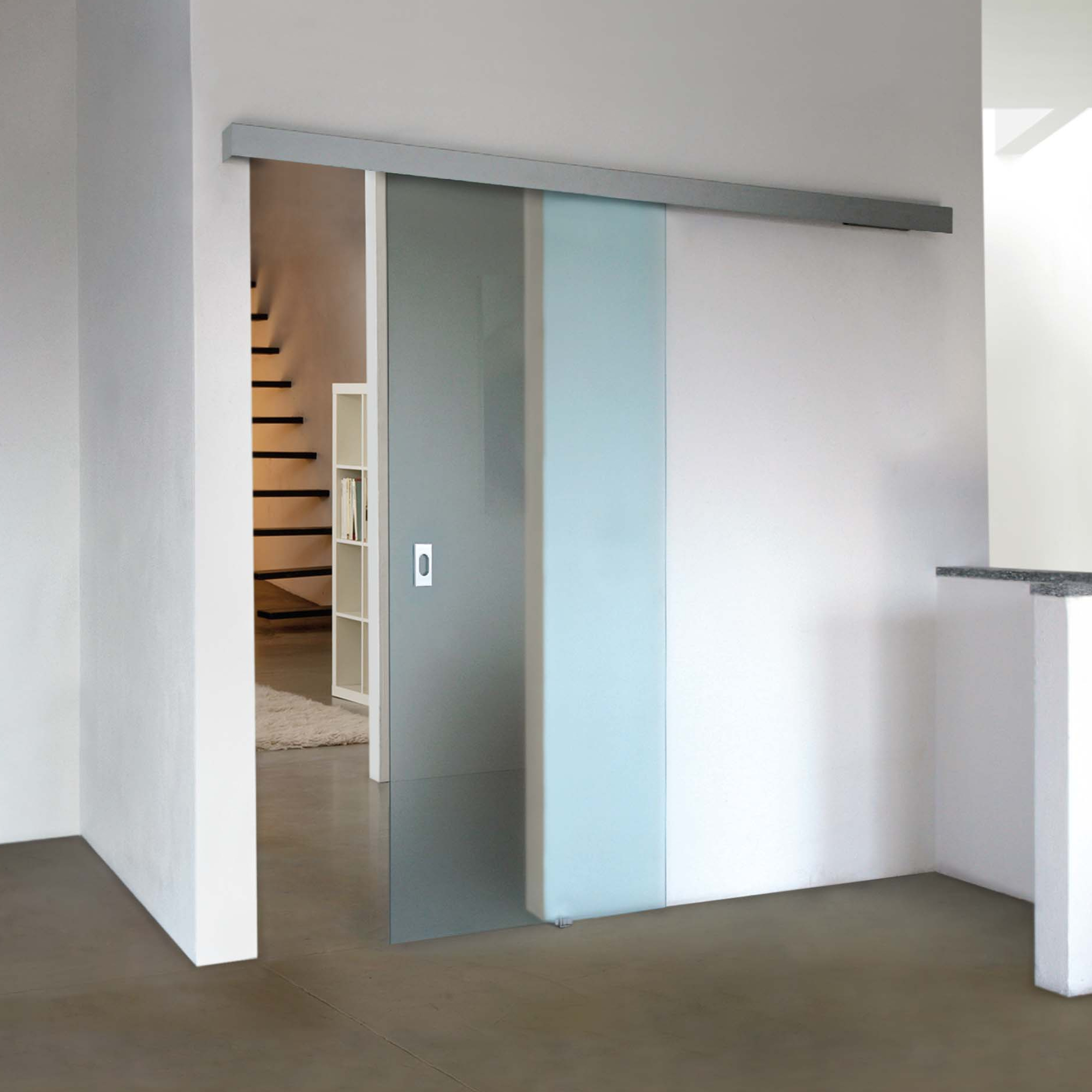

Oxidal sliding door system is a solution for special installations as it can be combined and installed in any form.

oxidal presentation

technical specifications

installation guide

Χαρακτηριστικά

Extras

Χαρακτηριστικά

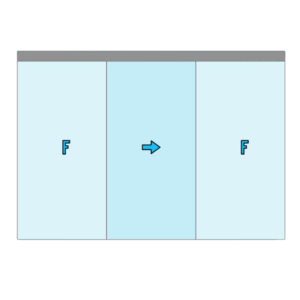

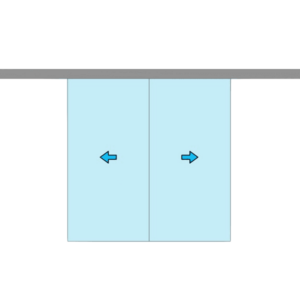

Technical features	1 sliding	1 sliding & 1 fixed	1 sliding & 2 fixed	2 sliding	2 sliding & 2 fixed	2 sliding & 1 fixed
Technical features	1 sliding	1 sliding & 1 fixed	1 sliding & 2 fixed	2 sliding	2 sliding & 2 fixed	2 sliding & 1 fixed	Glass pane thickness	8mm – 12mm	8mm – 12mm	8mm – 12mm	8mm – 12mm	8mm – 12mm	8mm – 12mm
Max door width	1200mm	1200mm	1200mm	1200mm	1200mm	1200mm
Max door weight	100Kg	100Kg	100Kg	100Kg	100Kg	100Kg
Installation	Roof/wall	Roof/wall	Roof/wall	Roof/wall	Roof/wall	Roof/wall
Fixing	Roof/wall	Roof/wall	Roof/wall	Roof/wall	Roof/wall	Roof/wall

Extras

Oxidal consists of :

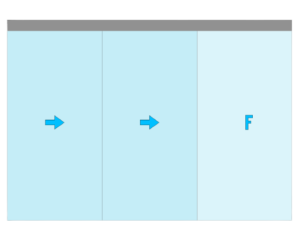

Technical features	1 sliding	1 sliding & 1 fixed	2 sliding & 1 fixed

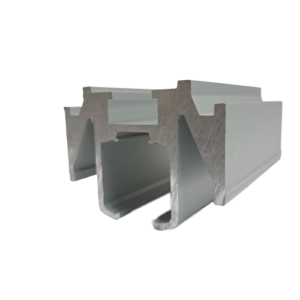

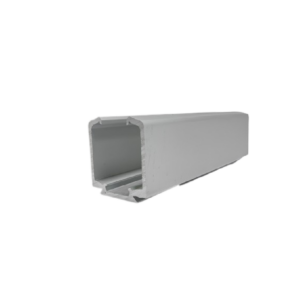

Technical features	1 sliding	1 sliding & 1 fixed	2 sliding & 1 fixed	Aluminium rail	107-18 \| Sliding door aluminium rail	107-765 \| Sliding door aluminium rail	107-18 \| Sliding door aluminium rail

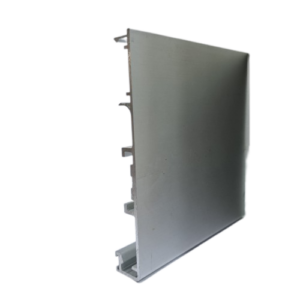

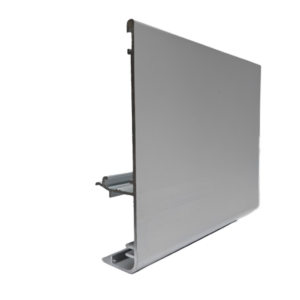

Aluminium rail cover cap	99-32 \| Aluminium rail cover cap	107-766 \| Aluminium rail cover cap	99-32 \| Aluminium rail cover cap

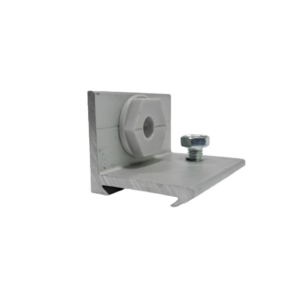

Angle guide support with cap	107-1063 \| Angle guide bracket for cap	–	107-1063 \| Angle guide bracket for cap

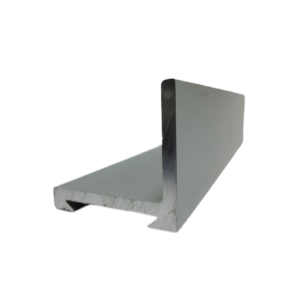

Angle guide support without cap	99-22 \| Sliding door guide support angle	–	99-22 \| Sliding door guide support angle

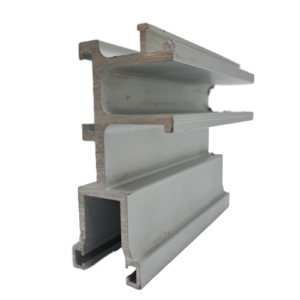

Fixed support profile	–	107-768 \| Fixed support profile	–

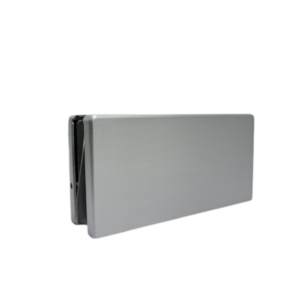

Hinge	10-64 \| Top hinge	10-64 \| Top hinge	10-64 \| Top hinge

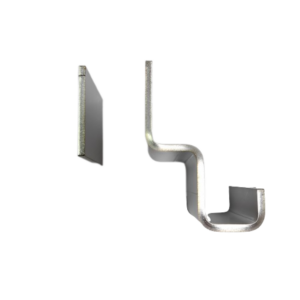

Floor rail guide	Included	Included	107-1183 \| Floor rail guide for telescopic sliding door

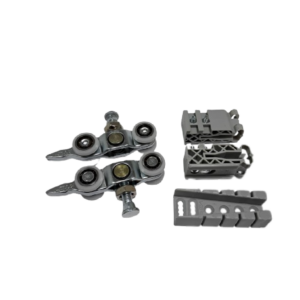

Pulley wheel set	107-17 \| Top pulley wheel	107-17 \| Top pulley wheel	107-17 \| Top pulley wheel

Additional system accessories :

Aluminium profile
107-696 \| Aluminium profile	107-820 \| Aluminium profile type “U”

Sealants

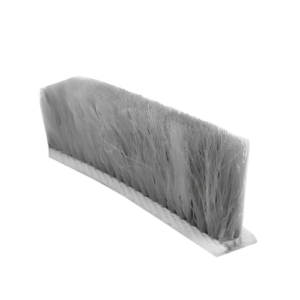

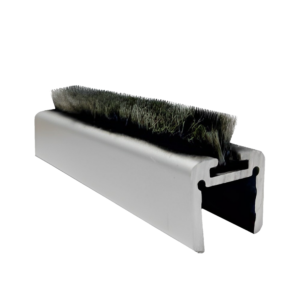

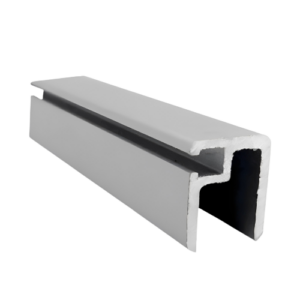

70-118 \| Grey brush	70-15 \| Sealant profile type “Π” with brush	70-23 \| Sealant corner profile with brush canal	70-88 \| Brush sealant hard

Locks

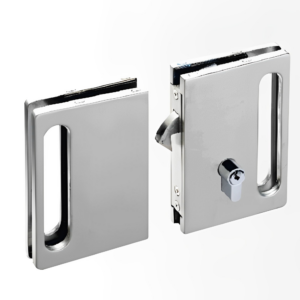

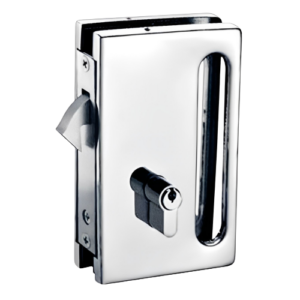

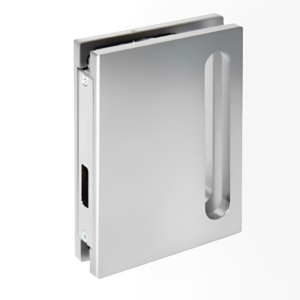

20-65 \| Sliding door lock with hook and handle	21-49 \| Lock keeper with handle	20-183 \| Lock keeper with handle	20-185 \| Lock keeper with handle and glass strike

Handles

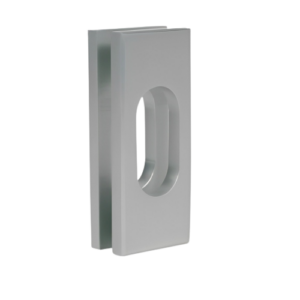

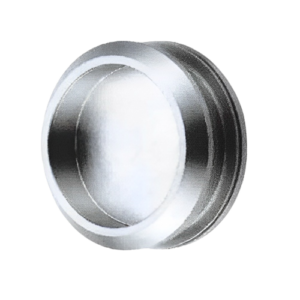

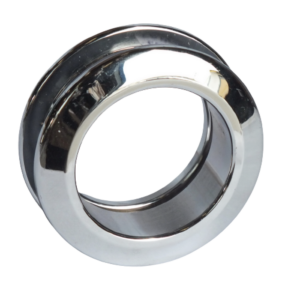

60-224 \| Round handle for sliding door	60-225 \| Round handle for sliding door	60-47 \| Sliding handle door

Pulley wheel set with shock absorbers

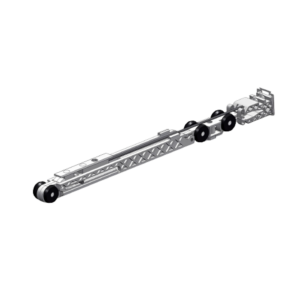

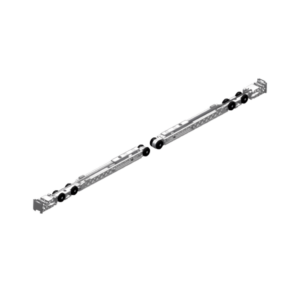

107-570 \| Pulley wheel set	107-571 \| Pulley wheel set

Hinge without notch

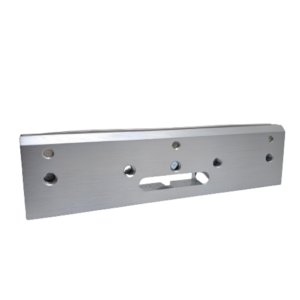

10-196 \| Hinge without notch
