PR-D 1000

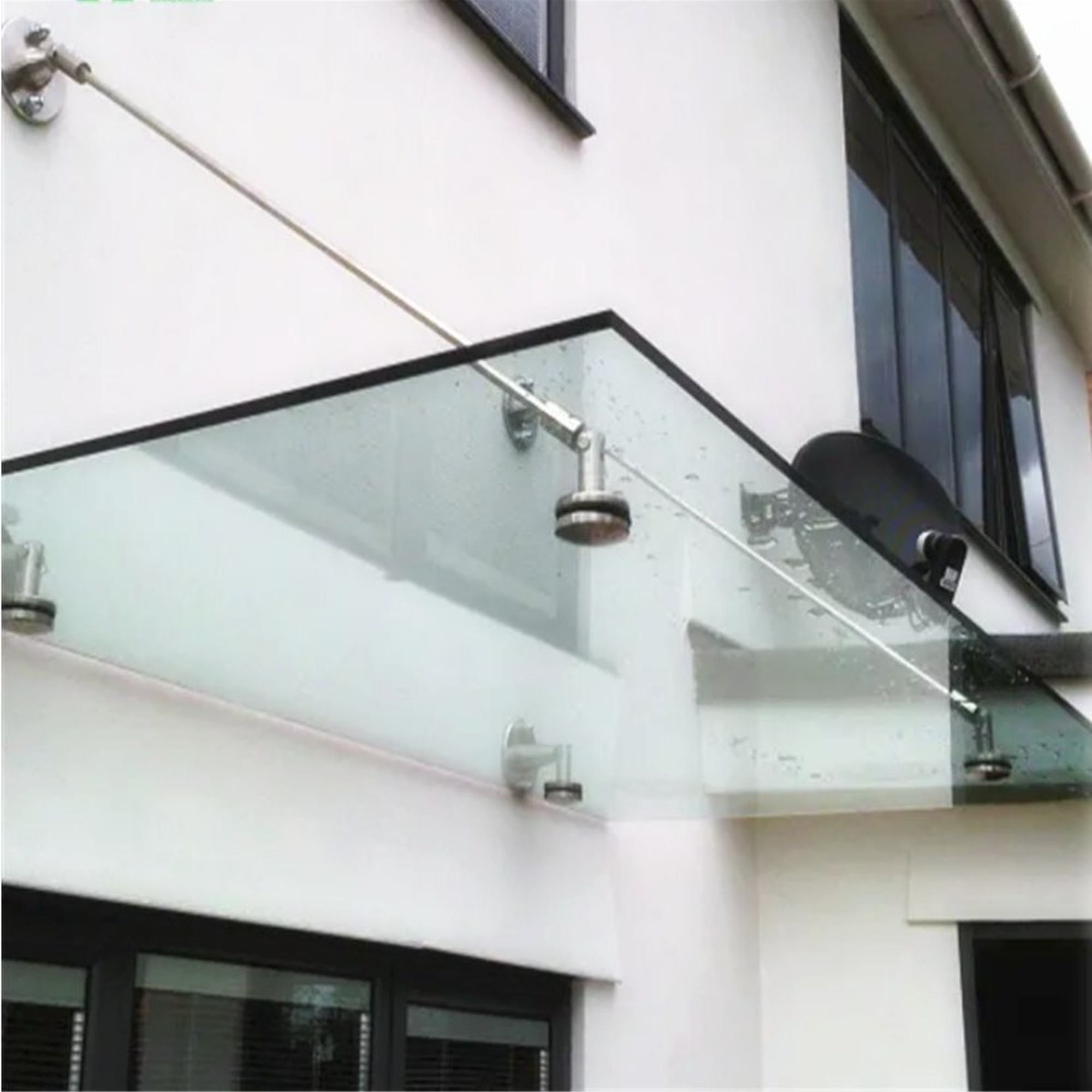

The PR-D system is a suspended canopy consisting of discrete 304 stainless steel components.

pr-d 1000 presentation

technical specifications

installation guide

PR-D 100140 PR-D 100170 PR-D 100200 PR-D 100240 PR-D 100260 PR-D 100280

Χαρακτηριστικά

Extras

Χαρακτηριστικά

Technical features	Pr-D 100140	Pr-D 100170	Pr-D 100200	Pr-D 100240	Pr-D 100260	Pr-D 100280
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Finish	Matt inox	Matt inox	Matt inox	Matt inox	Matt inox	Matt inox
Glass	6+6mm	6+6mm	6+6mm	6+6mm	6+6mm	6+6mm
Tempered	✔	✔	✔	✔	✔	✔
One-piece glazing	✔	✔	✔	✔	2 consecutive	2 consecutive
Steeve	1m	1m	1m	1m	1m	1m
Max length	1.4m	1.7m	2.0m	2.4m	2.6m	2.8m
Spur set	2 Φ10	3 Φ10	3 Φ10	3 Φ10	4 Φ10	4 Φ10
RAL paint	Available on request	Available on request	Available on request	Available on request	Available on request	Available on request

Extras

Spur set consisting of :

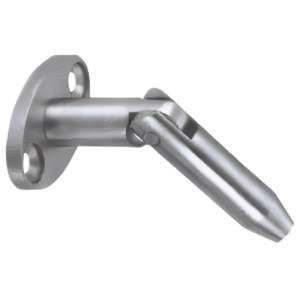

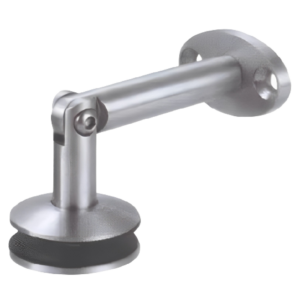

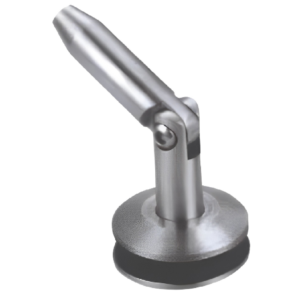

41-396 \| Bracket for setscrew – wall	41-390 \| Bracket for setscrew – glass	41-391 \| Wall bracket – glass	215-270 \| Solid shaft Φ10
