PR-K 1600

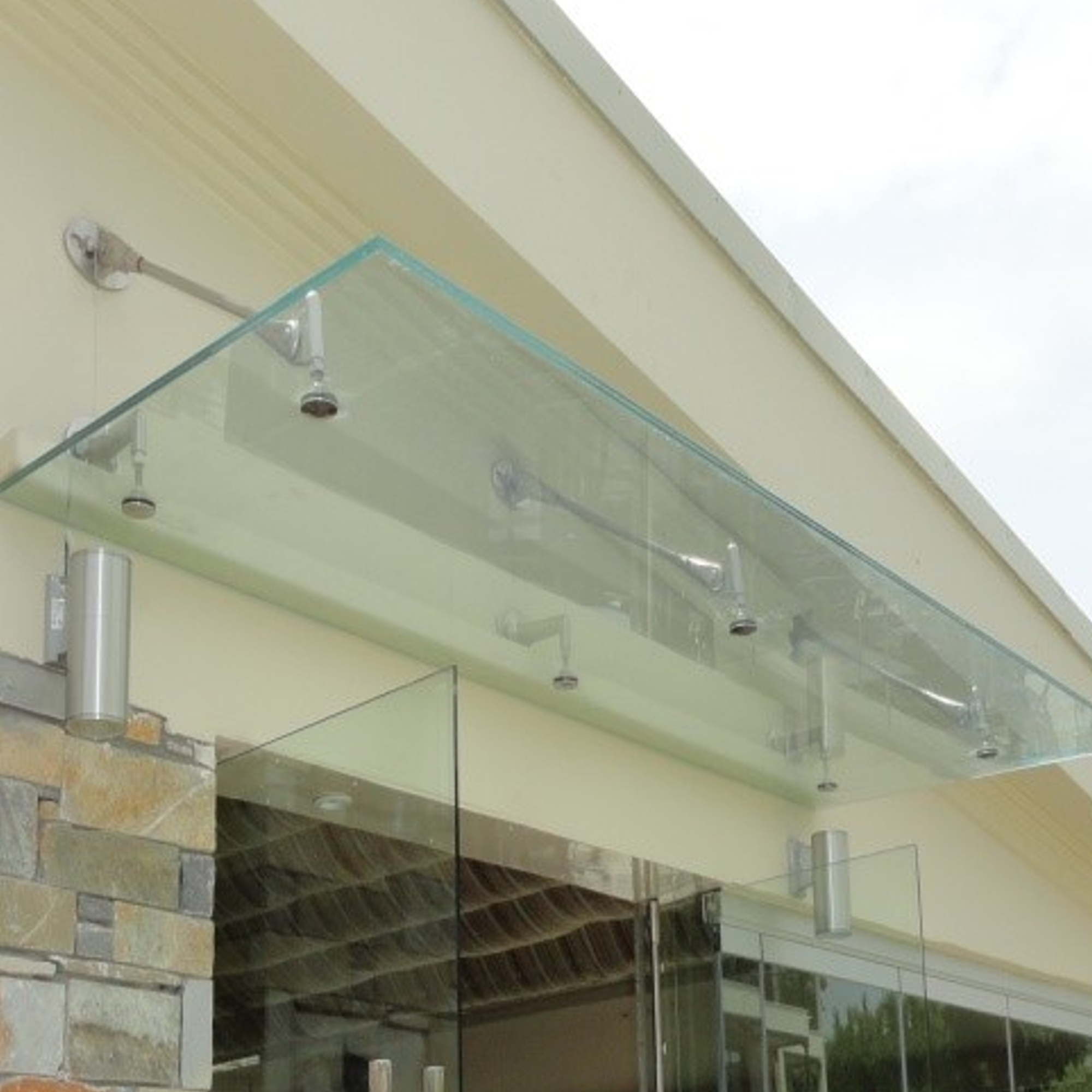

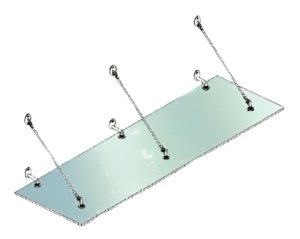

The PR-K system is a suspended canopy consisting of 304 stainless steel components.

pr-k 1600 presentation

technical specifications

installation guide

PR-K 160150 PR-K 160160 PR-K 160200 PR-K 160240 PR-K 160300 PR-K 160325 PR-K 160360

Χαρακτηριστικά

Extras

Χαρακτηριστικά

Technical features	Pr-K 160150	Pr-K 160160	Pr-K 160200	Pr-K 160240	Pr-K 160300	Pr-K 160325	Pr-K 160360
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Finish	Matt inox	Matt inox	Matt inox	Matt inox	Matt inox	Matt inox	Matt inox
Glass	10+10mm	10+10mm	10+10mm	10+10mm	10+10mm	10+10mm	10+10mm
Tempered	✔	✔	✔	✔	✔	✔	✔

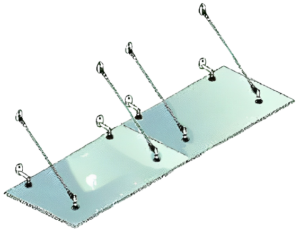

One-piece glazing	✔	✔	✔	✔	✔	2 consecutive	2 consecutive
Steeve	1.6m	1.6m	1.6m	1.6m	1.6m	1.6m	1.6m
Max length	1.5m	1.6m	2.0m	2.4m	3.0m	3.25m	3.6m

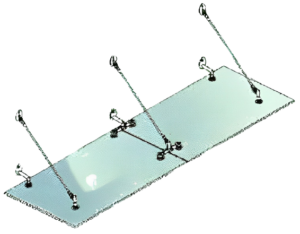

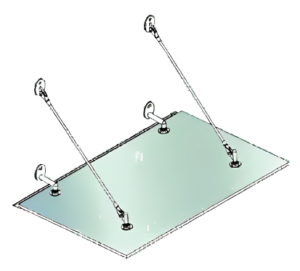

Spur set	2 Φ16	2 Φ16	3 Φ16	3 Φ16	3 Φ16	3 Φ16	4 Φ16
RAF paint	Available on request	Available on request	Available on request	Available on request	Available on request	Available on request	Available on request

Extras

Available :

Spur set consisting of :

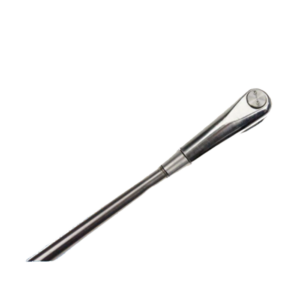

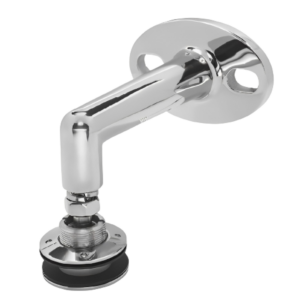

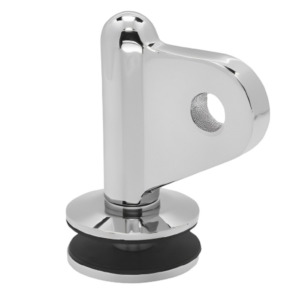

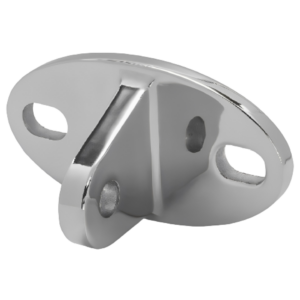

41-71 \| Wall base – setscrew	41-72 \| Glass base – setscrew	41-73 \| Glass base with wall	41-95 \| Setscrew head

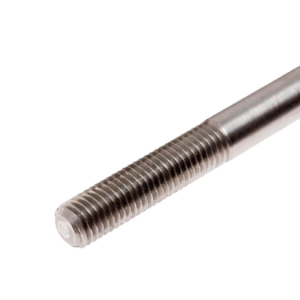

15-95 \| Solid shaft Φ16

Additional system accessories :

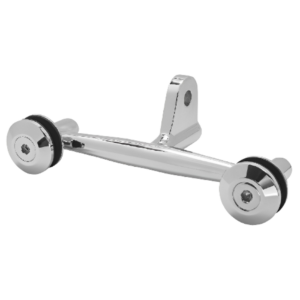

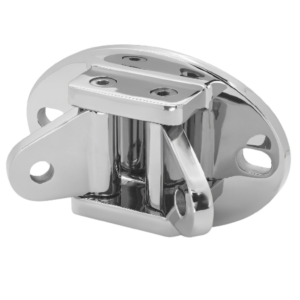

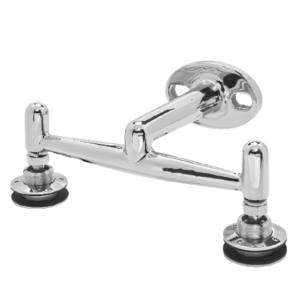

41-74 \| Double wall base – setscrew	41-93 \| Double base double glass – setscrew	41-94 \| Double base double glass – wall

Top

Spur set consisting of :
41-71 \| Wall base – setscrew	41-72 \| Glass base – setscrew	41-73 \| Glass base with wall	41-95 \| Setscrew head
15-95 \| Solid shaft Φ16
