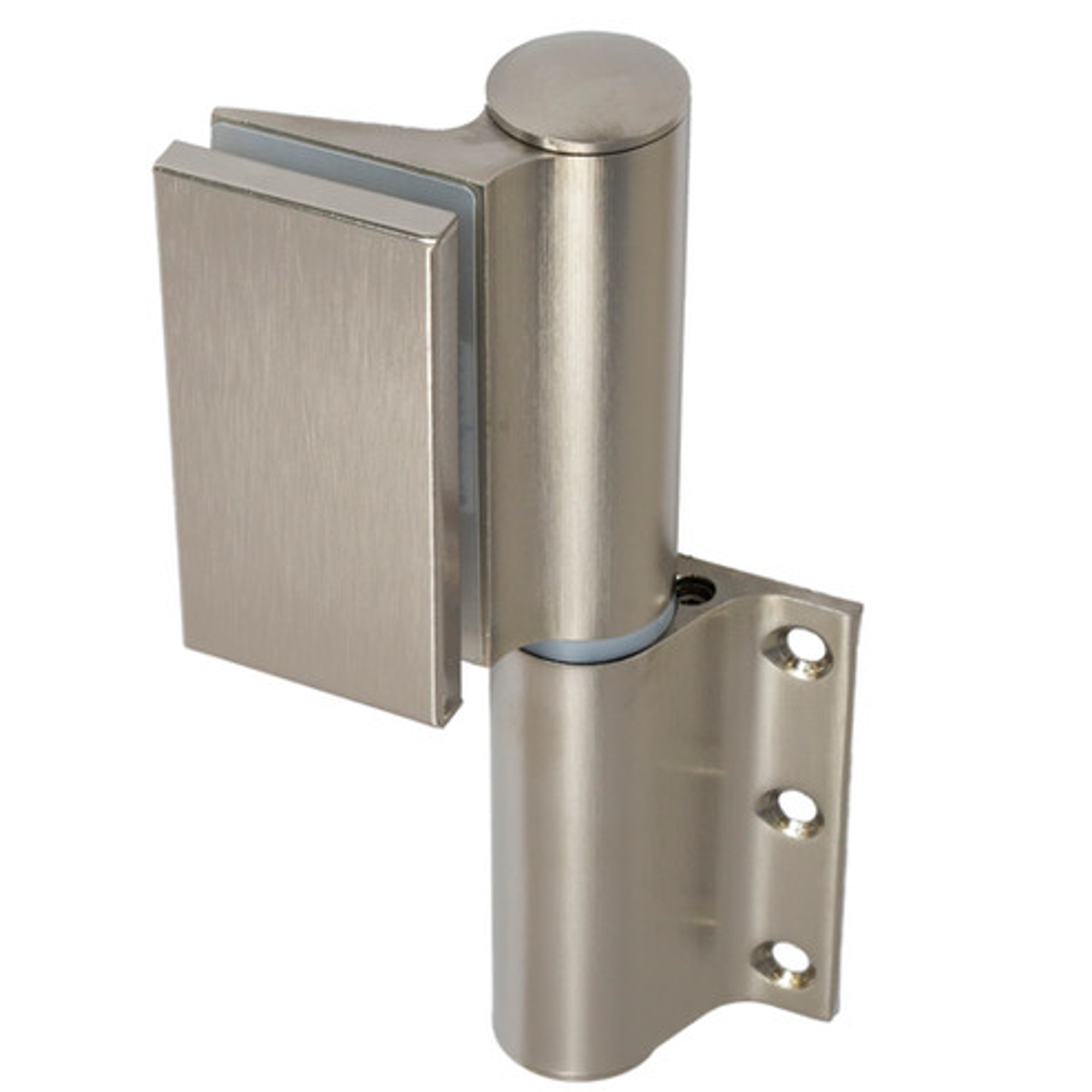

Hydraulic hinge G-W 835E10 Biloba Evo, 90° – 180°

prc 10-404 | Right similar satin stainless steel

prc 10-403 | Right similar satin stainless steel

technical specifications

notch specifications

Χαρακτηριστικά

Extras

Χαρακτηριστικά

Technical features	PRC 10-404	PRC 10-403
Finist	Similar satin stainless steel	Similar satin stainless steel
Opening direction	Right	Left
Material	Aluminium	Aluminium
Glass	8mm – 21,5mm	8mm – 21,5mm
Max door weight	100kg	100kg
Max door width	1000mm	1000mm
Weight	1,15kg	1,15kg
RAL paint	–	–
Notch code	E 206/835E10	E 206/835E10
