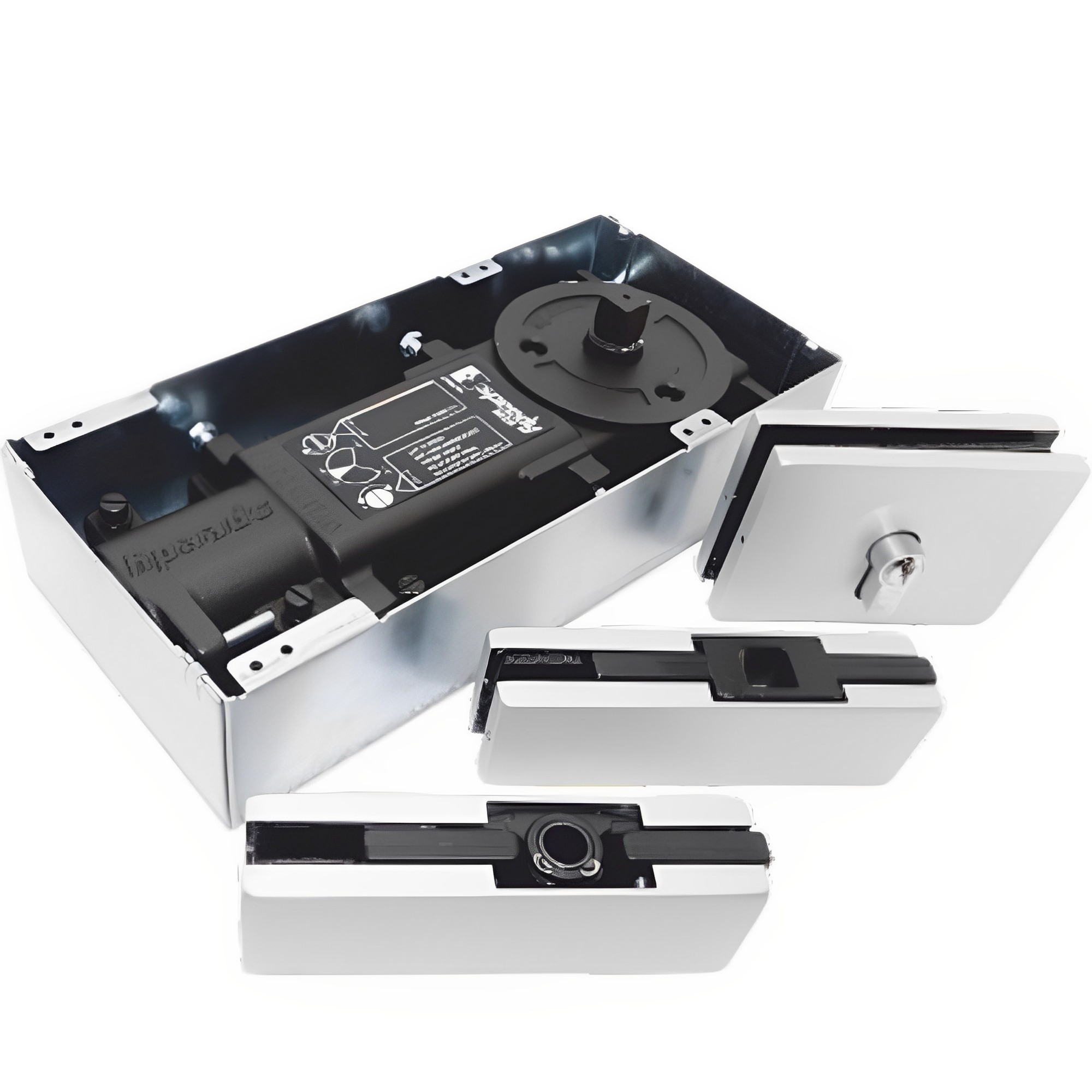

Set of door closer Speedy M25 (3-Black).
The set consists of a floor spirng, upper & lower hinges and floor lock
Combined with :
Top pivot Φ12 , Spring lock keepr
technical specifications
Set of door closer Speedy M25 (3-Black).
The set consists of a floor spirng, upper & lower hinges and floor lock
Combined with :
Top pivot Φ12 , Spring lock keepr
technical specifications
| Technical features | PRC 100-6 |
|---|---|
| Max opening angle | 180° |
| Hold-open | 90° |
| Return from | 115° |
| Max door weight | 200kg |
| Max door width | 1400mm |
| Glass | 8mm , 10mm , 12mm |
| Dim of cement case | 130mm x 283mm x 65mm |
| Material | Cast iron |
| Finish cover | Aluminium / Anodised silver |
| Weight | 8,0kg |
| Includes cover | ✔ |
| Includes top pivot | ✘ |
| Includes spring lock keeper | ✘ |
| Includes spindle | ✔ |
| Upper hinge | ✔ |
| Lower hinge | ✔ |
| Floor lock | ✔ |
| Included in glazing system : |
|---|
| Opening doors | |||
|---|---|---|---|
 DV-11 |
 DV-12 |
DV-13 |
DV-14 |
DV-22 |
DV-23 |
DV-24 |
DV-25 |
