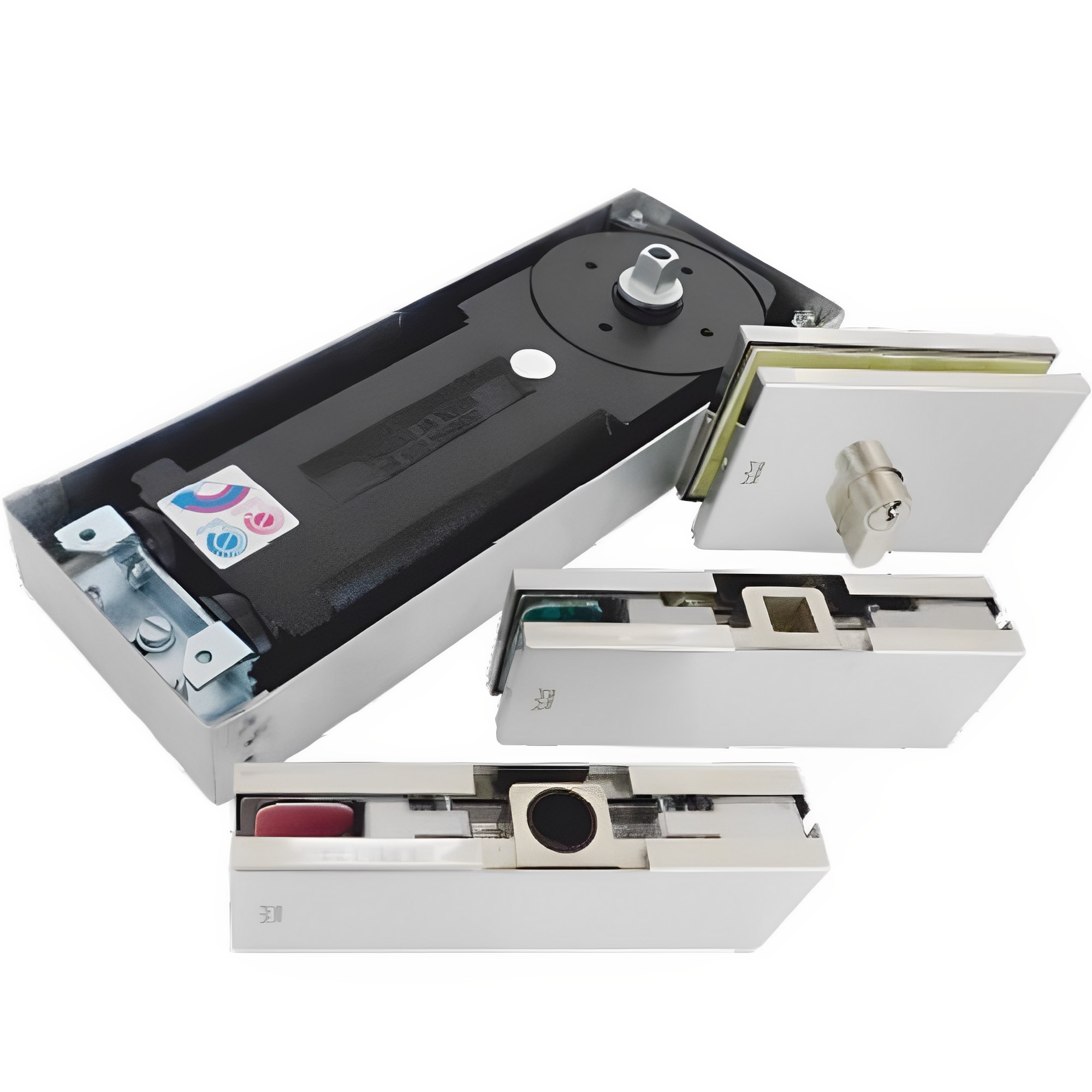

Set of door closer BTS84 En3
The set consists of a floor spirng, upper & lower hinges and floor lock
Combined with :
Top pivot Φ14 , Spring lock keeper
technical specifications
Set of door closer BTS84 En3
The set consists of a floor spirng, upper & lower hinges and floor lock
Combined with :
Top pivot Φ14 , Spring lock keeper
technical specifications
| Technical features | PRD 100-4 |
|---|---|
| Max opening angle | 130° |
| Hold-open | 90° |
| Return from | 130° |
| Max door weight | 100kg |
| Max door width | 950mm |
| Glass | 10mm |
| Dim of cement case | 108mm x 306mm x 40mm |
| Material | Cast iron |
| Finish Cover | Polished stainless steel |
| Weight | 7,12kg |
| Includes cover | ✔ |
| Includes top pivot | ✘ |
| Includes spring lock keeper | ✘ |
| Includes spindle | ✔ |
| Upper hinge | ✔ |
| Lower hinge | ✔ |
| Floor lock | ✔ |
| Included in glazing system : |
|---|
| Opening doors | |||
|---|---|---|---|
 DV-11 |
 DV-12 |
DV-13 |
DV-14 |
DV-22 |
DV-23 |
DV-24 |
DV-25 |
