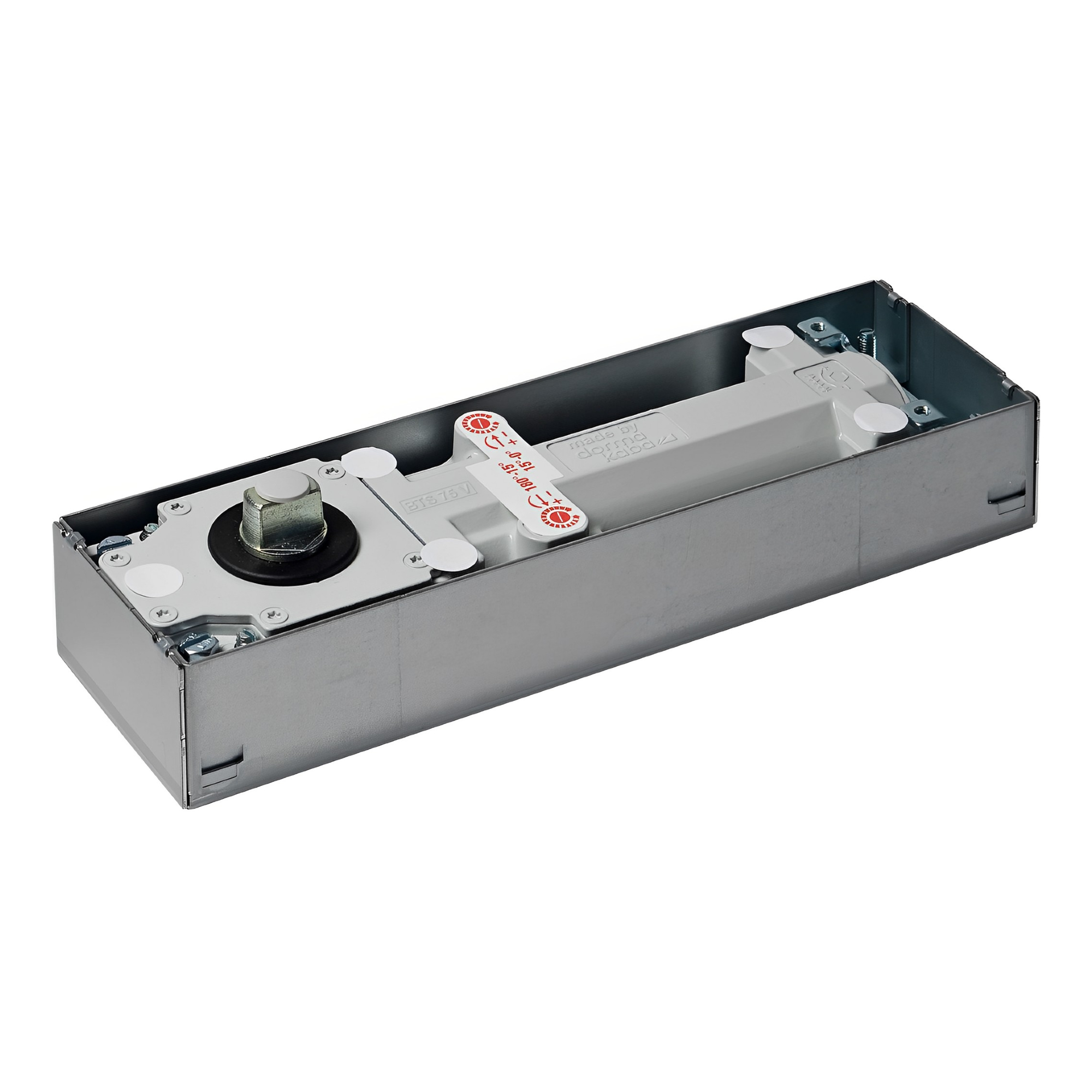

Floor spring BTS75V
Combined with :
Cover , Top pivot Φ14 , Italian type spindle , German type spindle
technical specifications
Floor spring BTS75V
Combined with :
Cover , Top pivot Φ14 , Italian type spindle , German type spindle
technical specifications
| Technical features | PRD 30-50 |
|---|---|
| Max opening angle | 175° |
| Hold-open | 90° |
| Return from | 175° |
| Max door weight | 120kg |
| Max door width | 1100mm |
| Dim of cement case | 82mm x 285mm x 50mm |
| Material | Cast iron |
| Finish cover | Satin stainless steel |
| Weight | 3,34kg |
| Includes cover | ✘ |
| Includes top pivot | ✘ |
| Includes spindle | ✘ |
