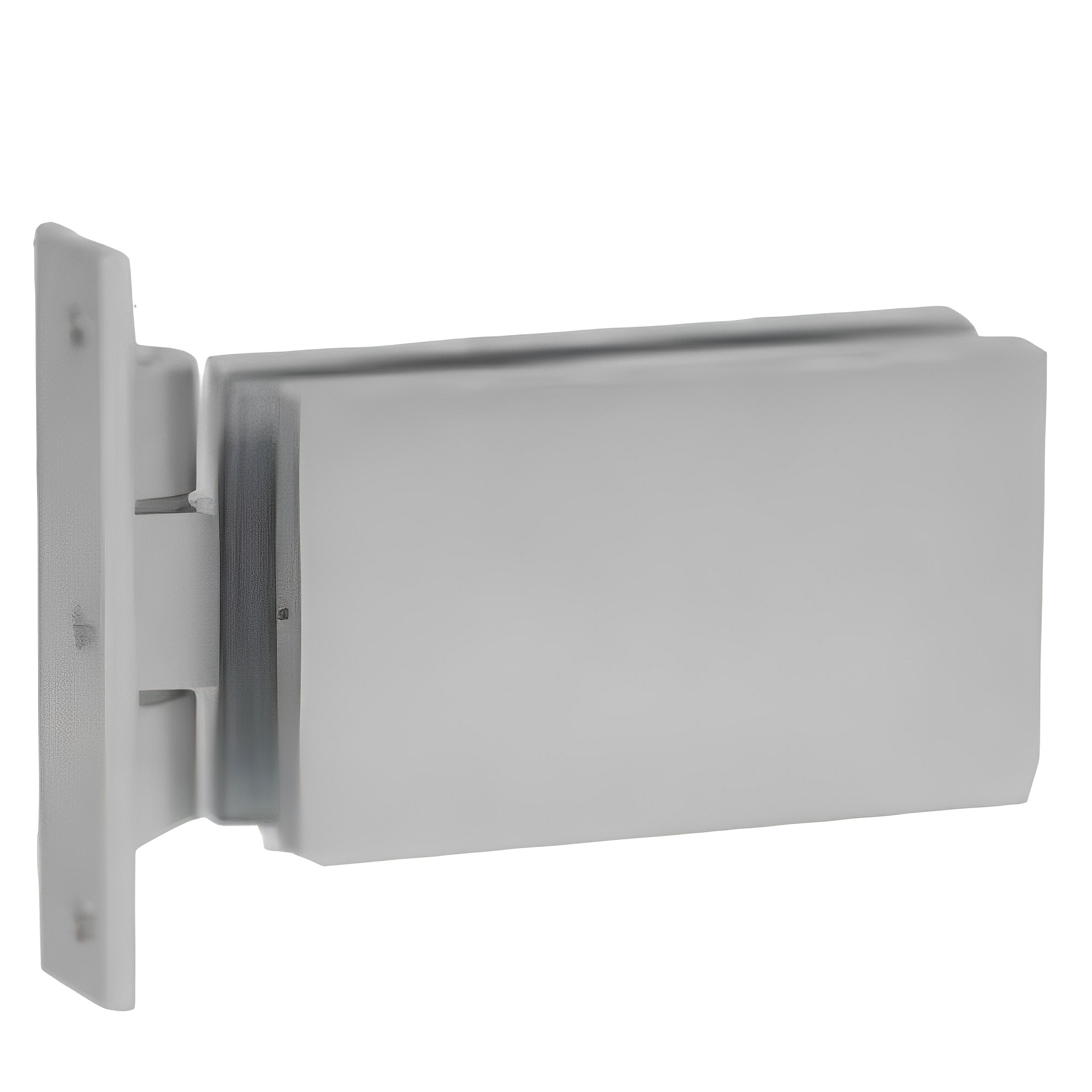

Flag hinge G-W
prp 10-373 | Anodized silver
prp 10-374 | Similar satin stainless steel
prp 10-384 | Black anodized matt
technical specifications
notch specifications
Flag hinge G-W
prp 10-373 | Anodized silver
prp 10-374 | Similar satin stainless steel
prp 10-384 | Black anodized matt
technical specifications
notch specifications
| Technical features | PRP 10-373 | PRP 10-374 | PRP 10-384 |
|---|---|---|---|
| Finish |  Anodized silver |
 Similar satin stainless steel |
 Black anodized matt |
| Material | Aluminium | Aluminium | Aluminium |
| Glass | 8mm – 12mm | 8mm – 12mm | 8mm – 12mm |
| Max door weight | 50kg | 50kg | 50kg |
| Max door width | 950mm | 950mm | 950mm |
| Weight | 0,26kg | 0,26kg | 0,26kg |
| RAL paint | – | – | – |
| Notch code | E 167/10 | E 167/10 | E 167/10 |
| Included in glazing system : |
|---|
| Opening door | |||
|---|---|---|---|
 Primera |
|||
