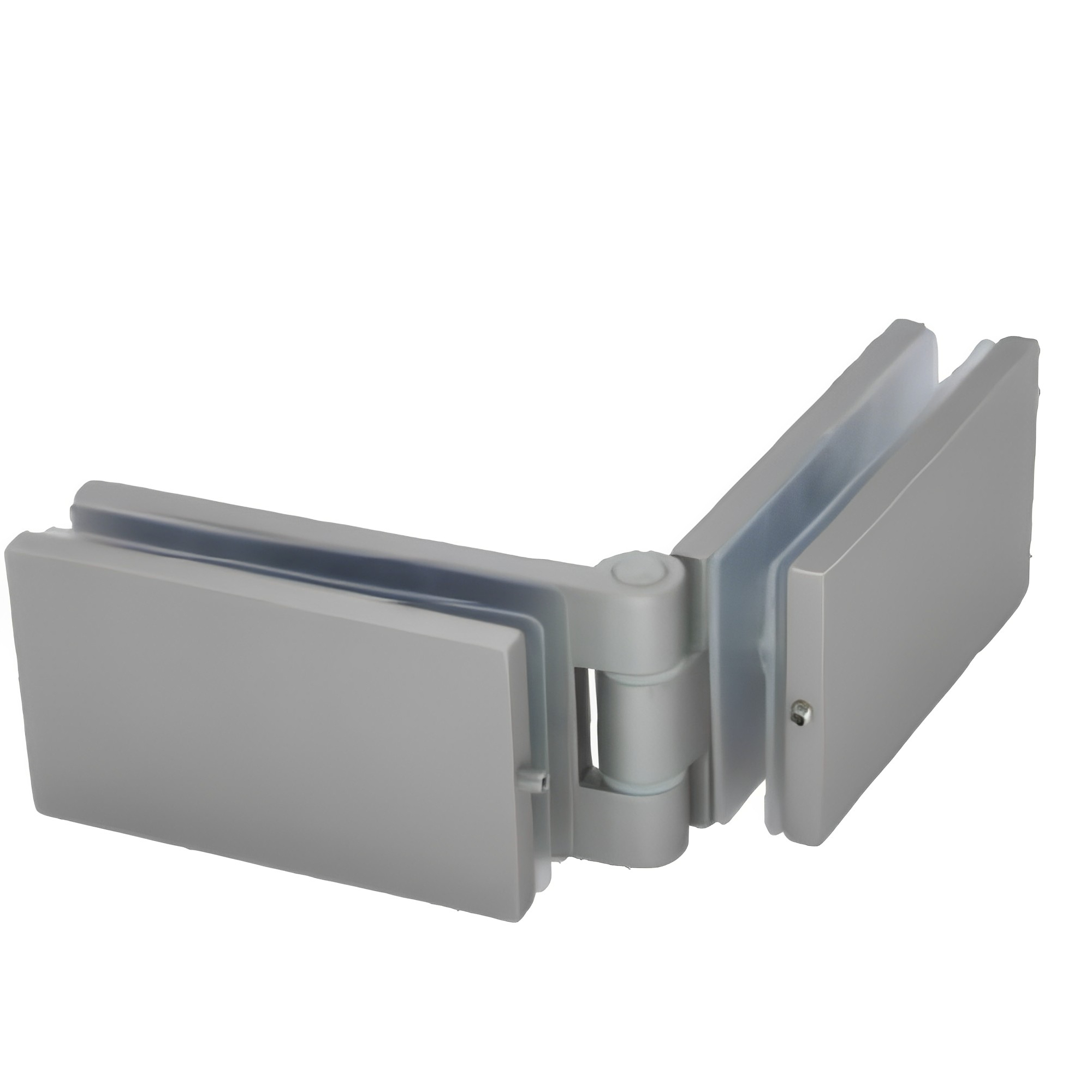

Double flag hinge G-G 180°
prd 10-382 | Anodized silver
prd 10-405 | Similar satin stainless steel
prd 10-406 | Black anodized matt
technical specifications
notch specifications
Double flag hinge G-G 180°
prd 10-382 | Anodized silver
prd 10-405 | Similar satin stainless steel
prd 10-406 | Black anodized matt
technical specifications
notch specifications
| Technical features | PRD 10-382 | PRD 10-405 | PRD 10-406 |
|---|---|---|---|
| Finish |  Anodized silver |
 Similar satin stainless steel |
 Black anodized matt |
| Material | Aluminium | Aluminium | Aluminium |
| Glass | 8mm – 12mm | 8mm – 12mm | 8mm – 12mm |
| Max door weight | 50kg | 50kg | 50kg |
| Max door width | 950mm | 950mm | 950mm |
| Weight | 0,46kg | 0,46kg | 0,46kg |
| RAL paint | – | – | – |
| Notch code | E 177/20 | E 177/20 | E 177/20 |
