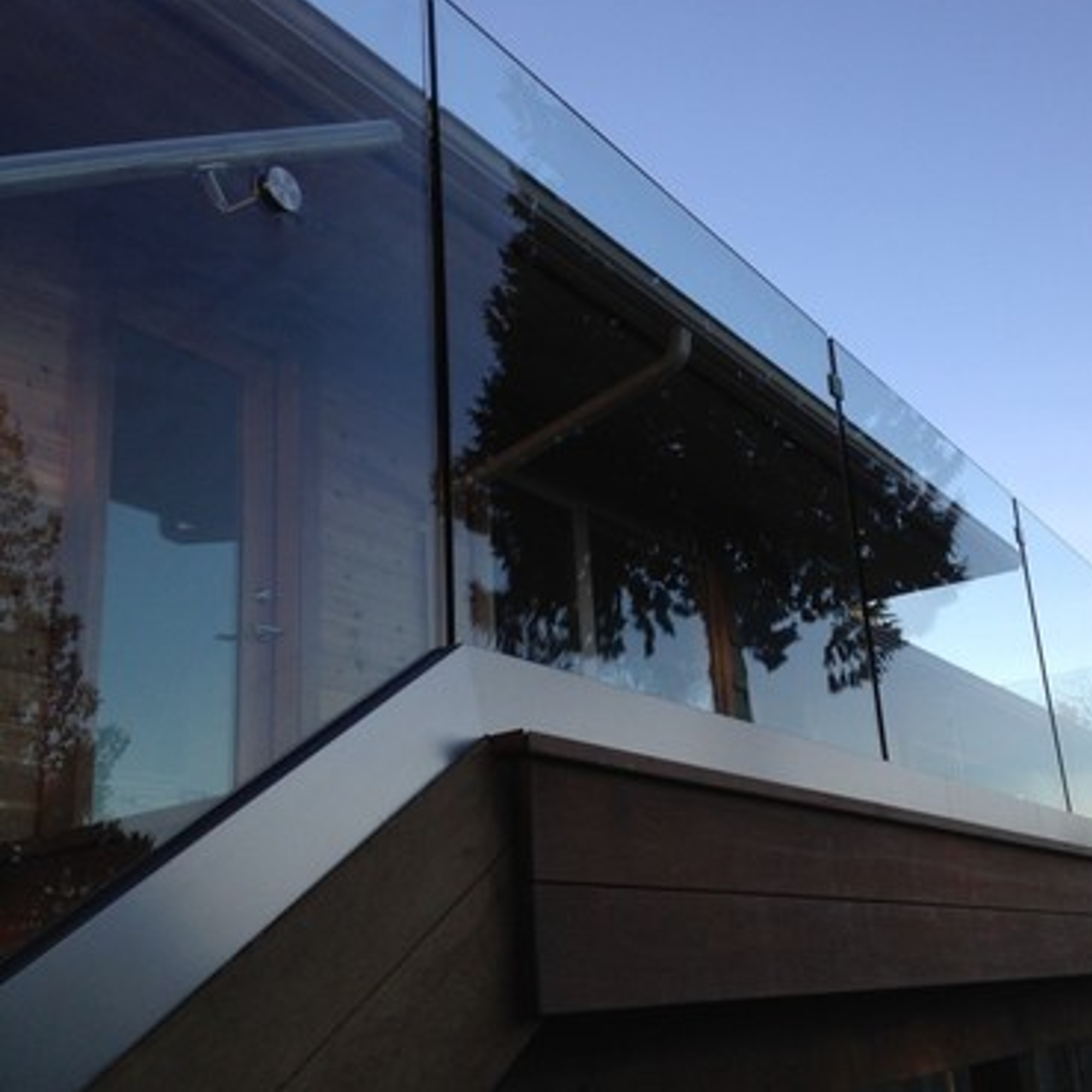

The PS-4563 system is for the floor mounting of glazing in a finished floor. With easy and direct installation the PS-4563 system offers added value to the construction. Its innovative design gives an excellent aesthetic result and reduces the need for system maintenance to a minimum.
ps-4563 presentation
technical specifications
installation guide
| Technical features | PS-4563 |
|---|---|
| Finish |  Polished SSSSMill finish |
| RAL paint | Available on request |
| Aluminium profile height | 63mm |
| Aluminium profile width | 45mm |
| Aluminium profile length | 6.1m |
| Fixing | Flooring |
| Adjustable | ✘ |
| Type of glazing | ● Tempering ● Laminate |
| Glass pane thickness | 10mm – 13.5mm |
| Max glazing height | 600mm |
| Max glazing length | Unlimited |
| Cutting on measures | ✔ |
| PS-4563 consists of : |
|---|
| Technical features | 5+5 glass pane | 6+6 glass pane |
|---|---|---|

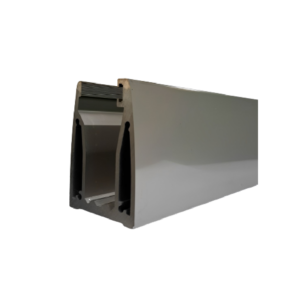

| Aluminium profile |  41-583 | Aluminium profile |
41-583 | Aluminium profile |

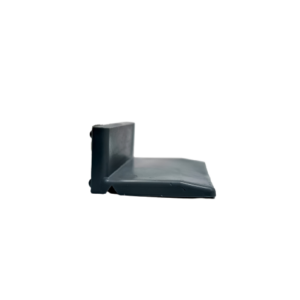

| Plastic base |  41-596 | Plastic base |
41-596 | Plastic base |

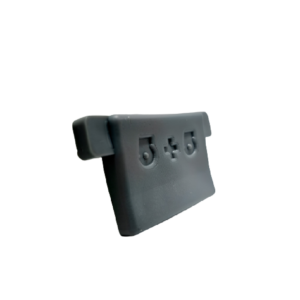

| Plastic wedge |  41-594 | Plastic wedge |
41-595 | Plastic wedge |
| Buttoned rubber |  41-422 | Buttoned rubber |
41-422 | Buttoned rubber |

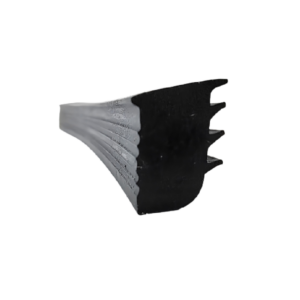

| Wedge rubber |  41-598 | Wedge rubber |
41-423 | Wedge rubber |
| Additional system accessories : |
|---|
| Caps | ||
|---|---|---|

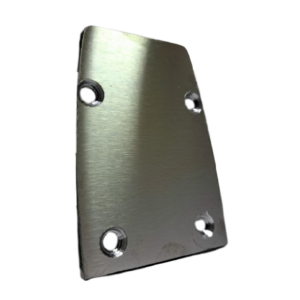

 41-584 | Side cap for balcony base |
||
| Handrails | |||
|---|---|---|---|
 iK-410 | Aluminium handrail Φ50 with cutout |
iK-575 | Aluminium handrail LED Φ50 with cutout |
iK-656 | Aluminium handrail Φ50 with 22mm cutout |
iK-442 | Aluminium handrail Φ50 with 12mm cutout |
iK-480 | Aluminium handrail Φ50 2mm |
|||
