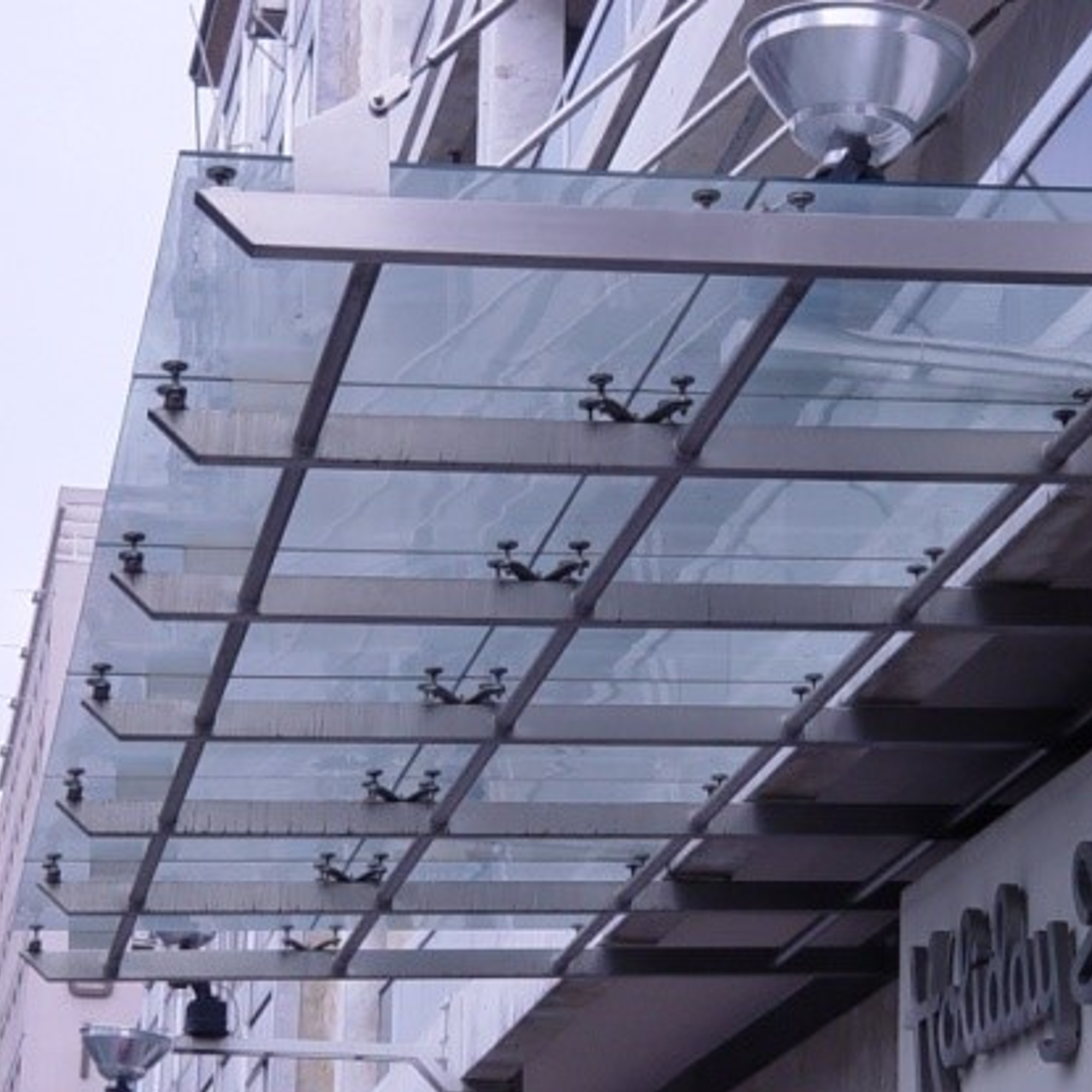

The ST-PL Plannar system is a superimposed canopy consisting of a metal substructure, on top of which Spider & Planar stainless steel point support fittings are applied.
st-pl planar presentation
technical specifications
installation guide
H200 K200 D400 D400P K160
| Technical features | ST-PL Planar |
|---|---|
| Material | Stainless steel |
| Finish |  Matt inox Polished inox |
| Distance between centre hole | 150mm & 220mm |
| Strength per arm | >= 200kg |
 Available series : |
|---|
| H200 | |||
|---|---|---|---|
| Features | Normal | Short length | |
| Single arm |  41-108 |
 41-167 |
|
| Double arm |  41-107 |
 41-166 |
|
| Triple arm |  41-106 |
||
| Quadruple arm |  41-105 |
||
| K200 | |||
|---|---|---|---|
| Features | Normal | Short length | |
| Single arm |  41-63 |
 41-62 |
|
| Double arm |  41-86 |
 41-91 |
|
| Triple arm | – | ||
| Quadruple arm |  41-61 |
||
| In combination with : |
|---|
| Matt inox heads | |||
|---|---|---|---|
 41-165 | Head planar hinged Φ59/36mm |
 41-731 | Hinged head planar Φ59/38mm |
 41-585 | Fixed head planar Φ60/28mm |
 41-586 | Hinged head planar Φ60/40mm |
 41-92 | Fixed head planar Φ59/34mm |
 41-336 | Fixed head planar Φ60/30mm |
||
