Suncord by Sunbell

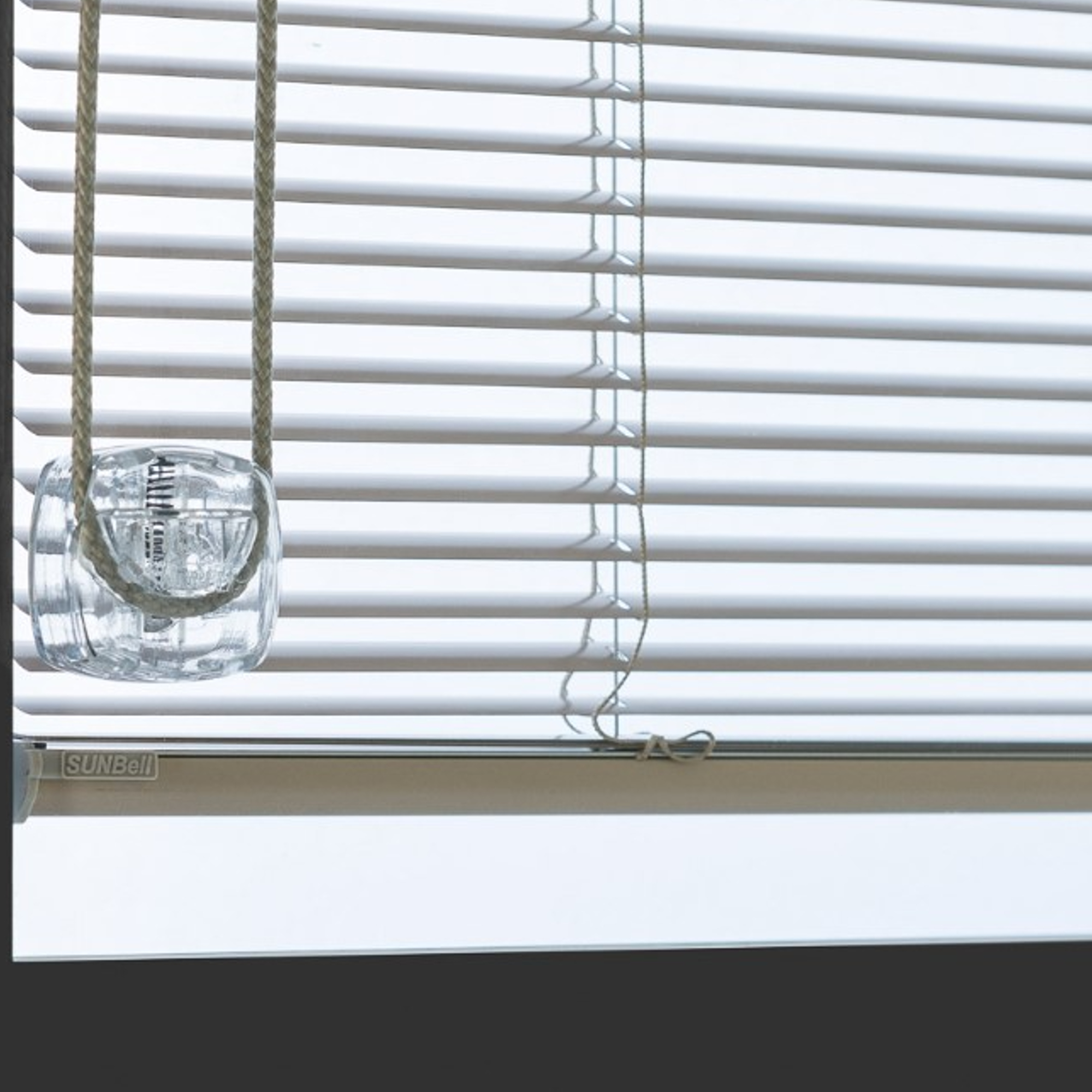

Suncord is a manual magnetic system that allows tilting, lifting and orientation of the blinds by means of two magnets, one inside and one outside the glass. The external control panel applied to the glass consists of a cable tied in a loop that, when moved, causes the two magnets to rotate allowing the desired position of the blind.

suncord by sunbell presentation

technical specifications

installation guide

Colours & texture

Sunven 002 Sunven 028 Sunven 029 Sunven 056 Sunven 048 Sunven 050 Sunven 051 Sunven 052 Sunven 053 Sunlight 000 Sunlight 010 Sunlight 022 Sunveil 0201 Sunveil 4440 Sunblock 4806

Technical features Suncord by sunbell
Blind material Metallic Single fabric Double fabric Black out fabric
Max width 2500mm 2500mm 2500mm 2500mm
Max height 3000mm 3000mm 3000mm 3000mm
Space 20mm / 22mm / 27mm 22mm / 27mm 27mm 27mm
Remote control
Blind regulator Manual Manual Manual Manual
Energy reflection* 36% – 71% 60%
Light reflection* 43% – 79% 28% – 48% 28% – 48% 72%
Energy absorption* 29% – 64% 3% – 35% 3% – 35% 40%

* Depends on the colouring of the blind
