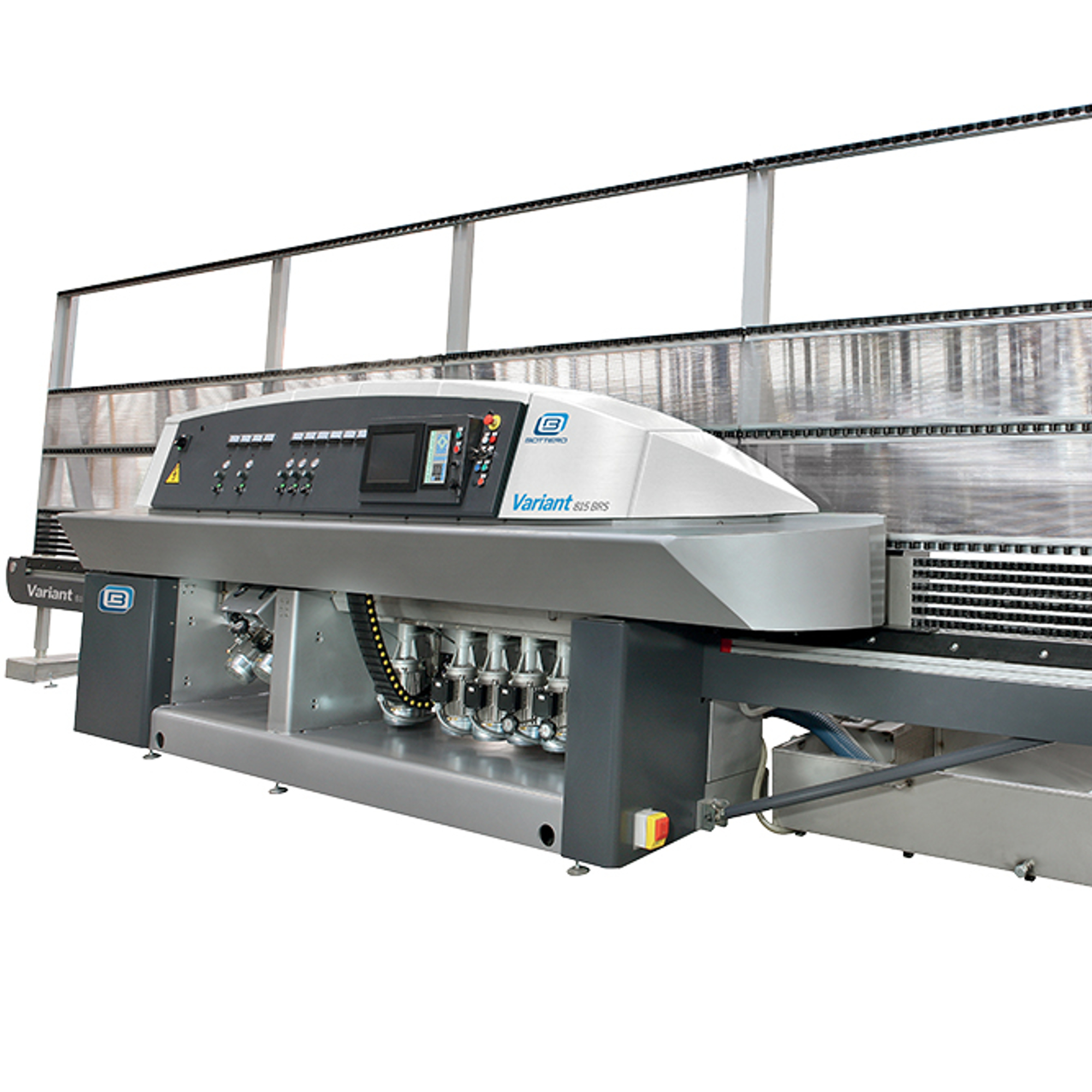

Variant is the range of Bottero variable angle Straight Line Edgers. The 8 models available within this range of machines allow working the flat edge of an angle varying up to 45° and removing the arris.
machine brochure
family presentation
Variant is the range of Bottero variable angle Straight Line Edgers. The 8 models available within this range of machines allow working the flat edge of an angle varying up to 45° and removing the arris.
machine brochure
family presentation
| Tecnnical features | 810 BC-BR | 810 BCS-BRS | 810 CD | 810 CDS | 814 BC-BR | 814 BCS-BRS | 815 BC-BR | 815 BCS-BRS |
|---|---|---|---|---|---|---|---|---|
| Automation level | ★★★☆☆ | ★★★☆☆ | ★★★☆☆ | ★★★☆☆ | ★★★☆☆ | ★★★☆☆ | ★★★☆☆ | ★★★☆☆ |
| Minimum glass dim | 100x100mm | 40x40mm | 100x100mm | 40x40mm | 100x100mm | 40x40mm | 100x100mm | 40x40mm |
| Minimum glass thickness | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm | 3mm |
| Maximum glass thickness | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
| Speed | 0,4 – 6m/min | 0,4 – 6m/min | 0,4 – 6m/min | 0,4 – 6m/min | 0,4 – 6m/min | 0,4 – 6m/min | 0,4 – 6m/min | 0,4 – 6m/min |
| Processing angle | 0 – 45° | 0 – 45° | 0 – 45° | 0 – 45° | 0 – 45° | 0 – 45° | 0 – 45° | 0 – 45° |
| Installed power | 27KVA | 27KVA | 27KVA | 27KVA | 27KVA | 27KVA | 27KVA | 27KVA |
| Weight | 4600Kg | 4600Kg | 5200Kg | 5200Kg | 5200Kg | 5200Kg | 5400Kg | 5400Kg |
